Gridbots Artimus

ROBOTS FOR INJECTION MOLDING MACHINES

Home » Robotics » Gridbots Artimus

Artimus is an EUROMAP-67 compatible - 11 Degrees of Freedom Robot used for Injection Molding Machines with a capacity of upto 4000 Tonnes compression.

The system has a reach of 2000 mm inside the mold and can pick upto 4 parts simultaneously with a weight of 2 Kg maximum.

The robot comes with a teach pendant and touch screen controller and motion controller to control and program in real time.

It utilizes gridMOVE series of controllers for lower operation power (Under 500 Watts) and precise control. The robot in itself weight only 100 kg and can be setup in very low time.

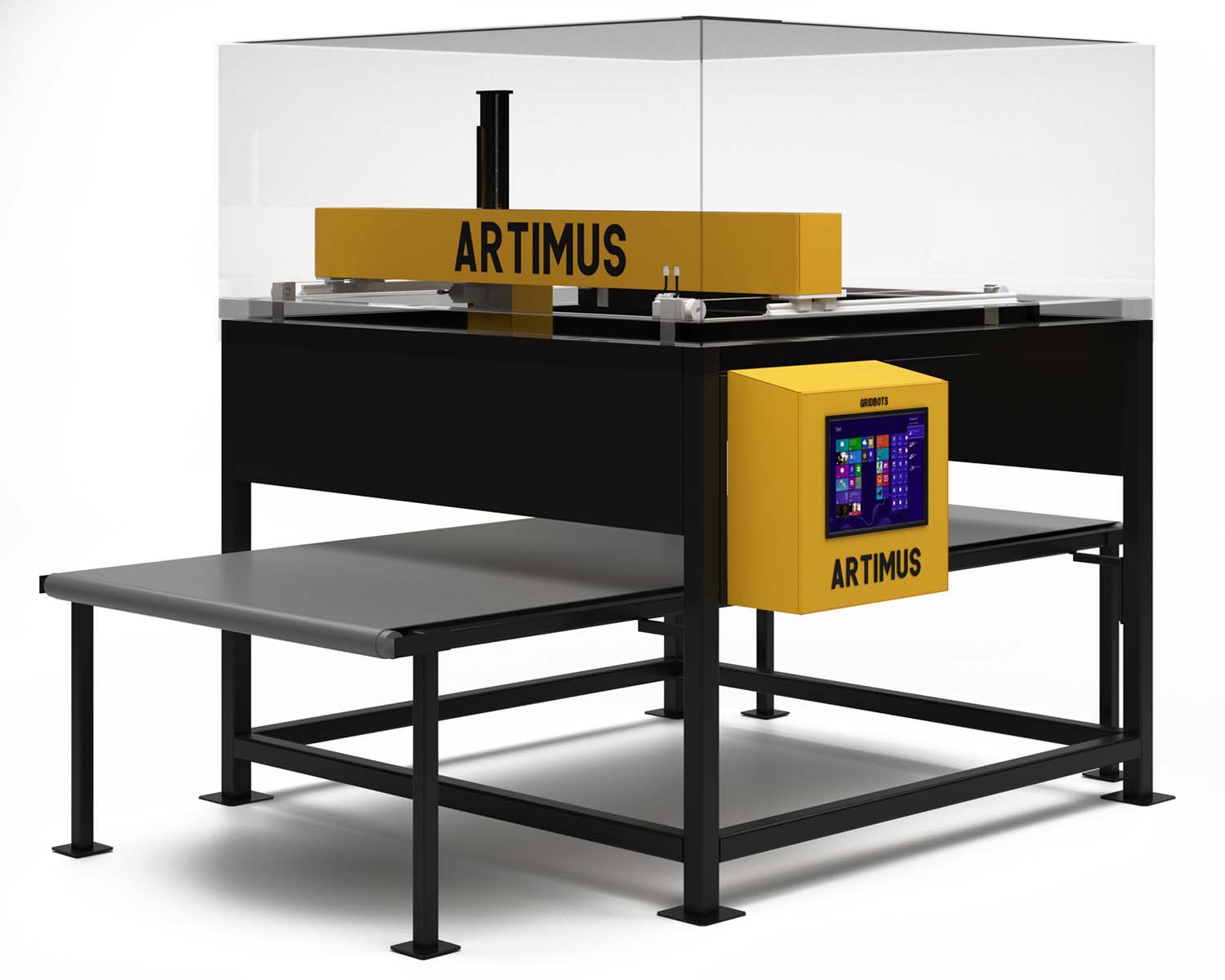

artimus_main


INJECTION MOLDING MACHINE





Features


EUROMAP-67

Just 500 Watts

Upto 4000 Tonne

Multiple Gripper

Easy to Install

Programmable

20 GPIO Pins

Fast ROI and High Speed






Specifications


Model Number GB-MH-IMOLD
Payload Upto 8 Kg
Part Size 50 to 600 mm
Cycle Time 30 Seconds
Motion Resolution 0.5 mm
Working Area 2000 mm Stroke
Parts Handling upto 10 in each pick
Motion Controller gridMOVE
Linear Speed 300 mm/second
Power Rating 500 Watts

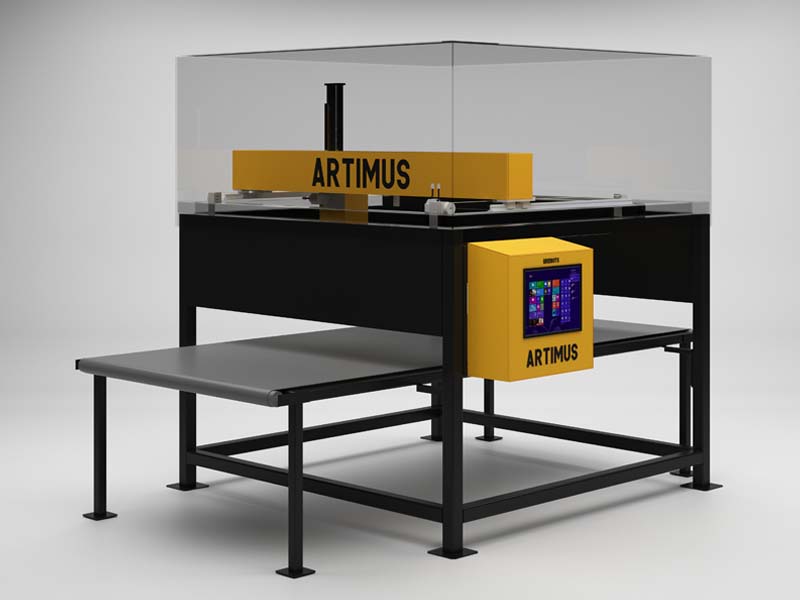

artimus_1

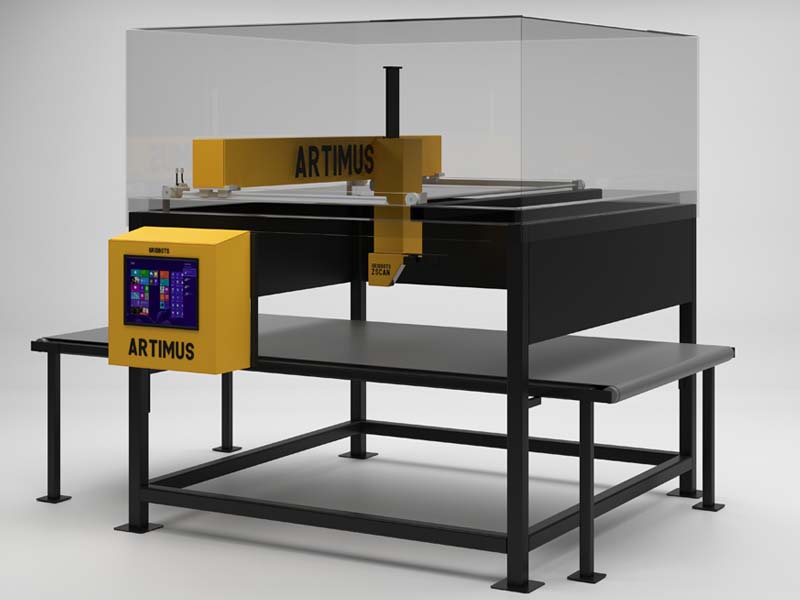

artimus_2

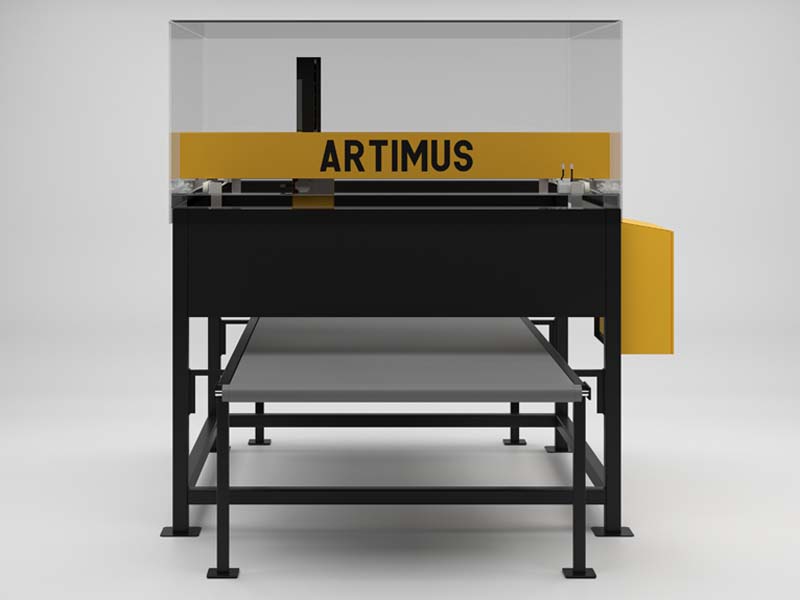

artimus_3

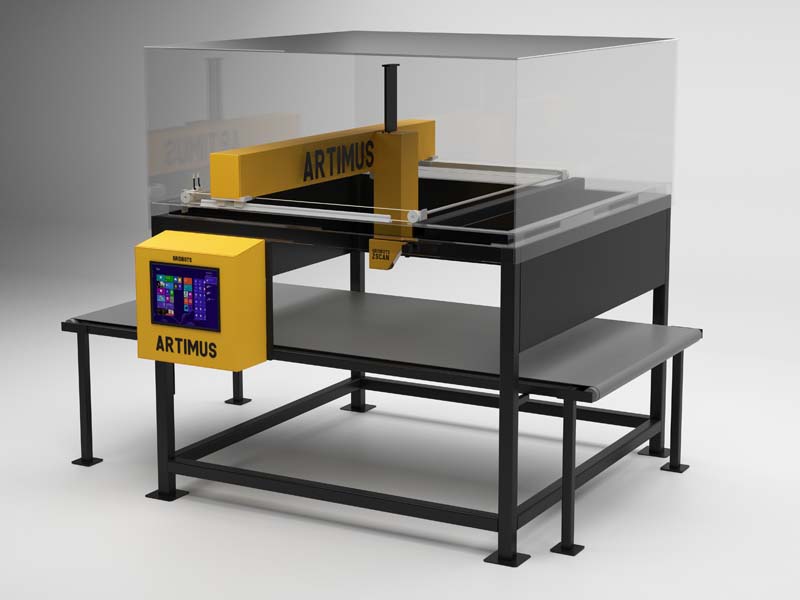

artimus_4






Drawings



artimus_drawing_1
artimus_drawing_2
artimus_drawing_3
artimus_drawing_4
