Delta - 2

High Speed Picking Robot

Home » Robotics » Delta - 2

Delta-2 is a high speed robot for picking and sorting of items from the conveyor belts.

This system comes with integrated machine vision and multiple gripper options where user can pick any item ranging from 2 mm to 250 mm in size.

The robot has a sturdy built with carbon fiber arms to minimize the moment of inertia of moving parts.

It utilizes gridMOVE series of controllers for lower operation power (Under 500 Watts) and precise control

delta_2

DELTA ROBOT





Features


Upto 100 Parts/Min

Just 500 Watts

Food Grade Ready

Multiple Gripper

Easy to Install

Robotic Swarm

Integrated Machine Vision

Fast ROI and High Speed






Specifications


Model Number GB-MH-DLT2
Payload Upto 5 Kg
Part Size 2mm to 250 mm
Cycle Time 0.5 Seconds
System Resolution 0.3 mm
Working Area Hemispherical (Diameter=600 mm/ Height=200mm)
Vertical Stroke Resolution 0.1 mm
Vertical Stroke Speed 500 mm/ Sec
System Picking Speed 100 Parts per minute
Power Rating 500 Watts

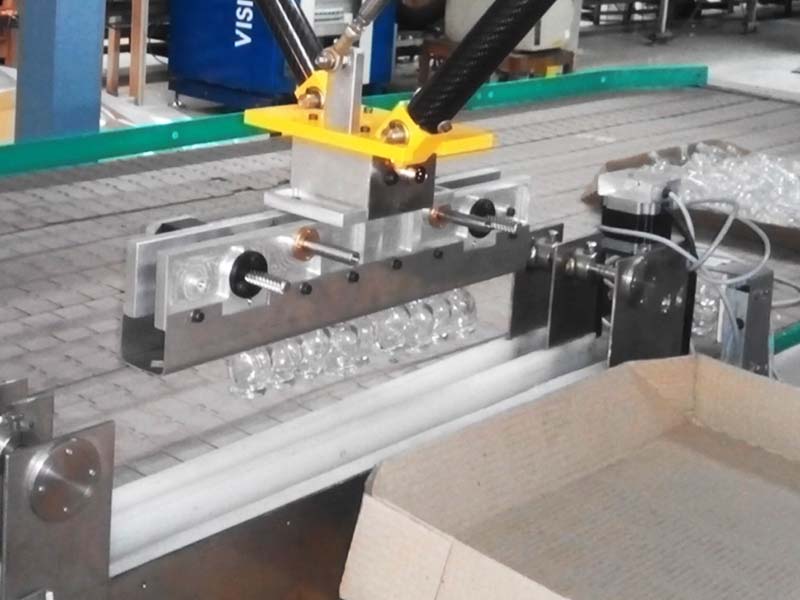

delta_2_1

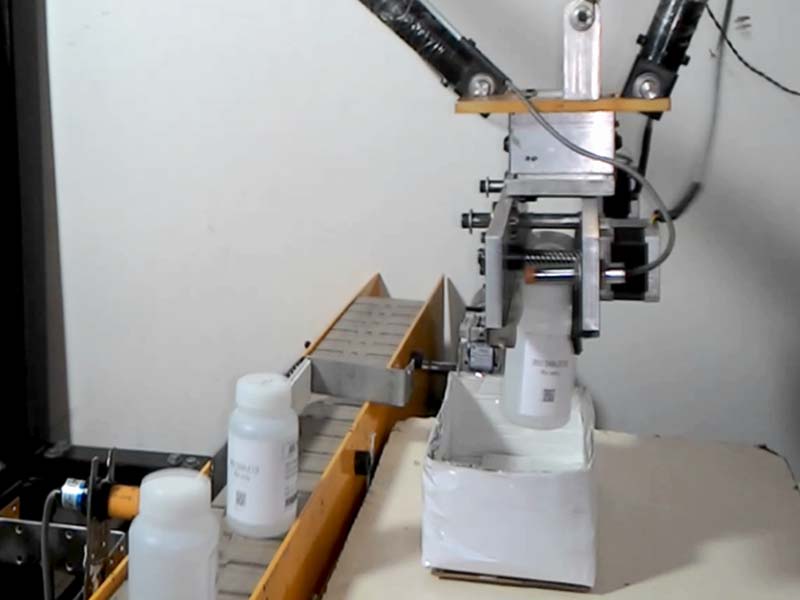

delta_2_2

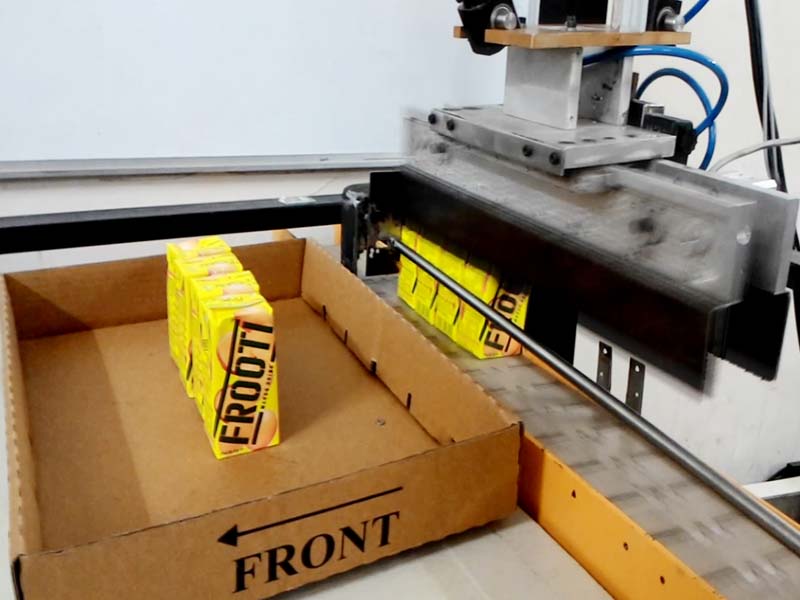

delta_2_3

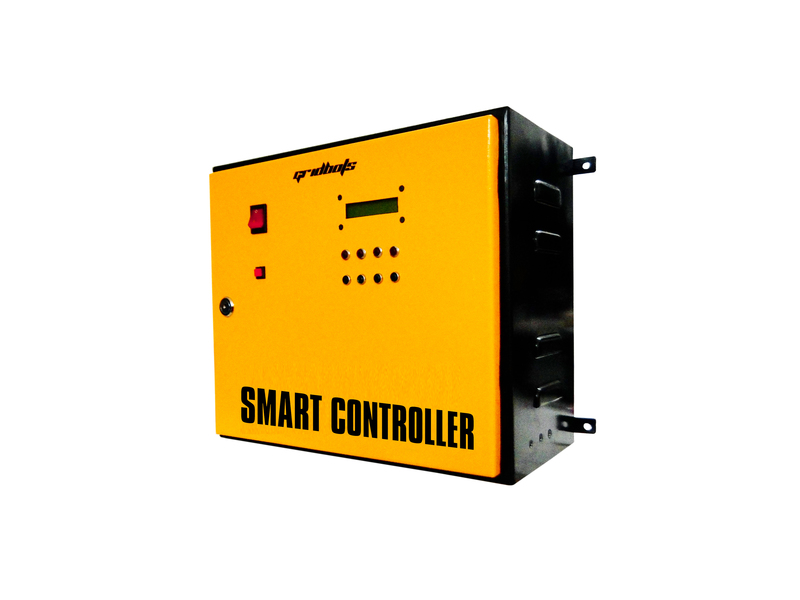

delta_2_4






Drawings

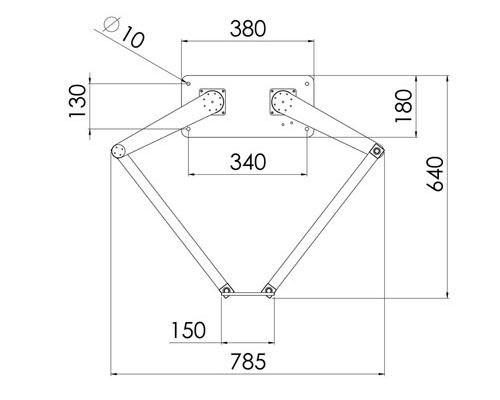

delta_2_drawing_1

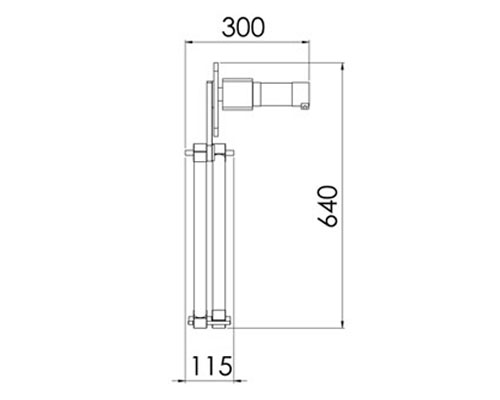

delta_2_drawing_2

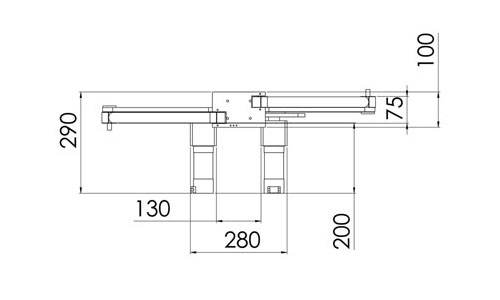

delta_2_drawing_3
delta_2_drawing_4
