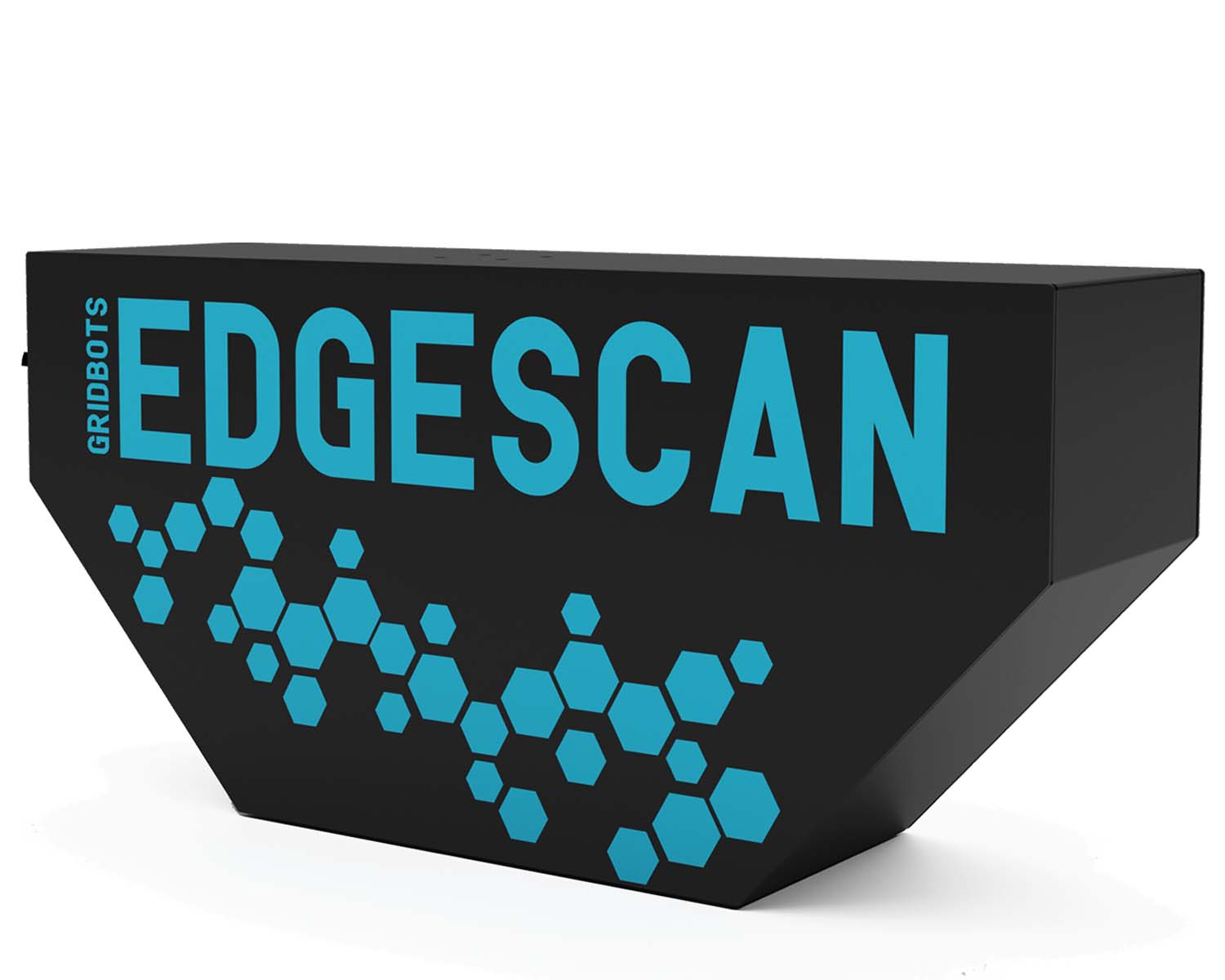

GLASSO EDGESCAN
Glass EDGE INSPECTION SYSTEM
Glasso Glass Gauge is an online thickness measurement system for Solar Glass Production and Tempering Lines. This system can measure thickness of solar glass ribbons and sheets at a amazin speed of upto 60 Meters per minute.The system works on laser phase shift sampling technology to calculate the thickness down to a precision of 50 Microns.
The system comes with automatic calibration references which help to maintain the accuracy for long duration without any lengthy calibration sessions or downtime. The system is tolerant to pattern in the Glass and can be used across the glass ribbon length to measure the thicnesses. It provides the various statistical tools like mean,median,mode,scatter plots and many other data visualisation tools to provie indepth understanding of the Glass production variation and tolerances being adhered to. The system allows elimination of manual judgment and measurements which gives repeatable and consistent process control, reduces waste in process and reduces product returns which ultimately leads to Improved quality and increased throughput.
Glass Edge Inspection
Features
Continuous Monitoring on the Glass Ribbon Thickness for 100% Online Measurement
Provides max, min, average, Median, mode and many other statistical views.
Provides detailed point specific data.
Auto Calibration with certified reference system
Capable of measuring thickness of any Glass Pattern "( Matt - Prismatic)
Works with all glass thicknesses (1.8-12 mm)
Non Contact Technology.
Option to sample multiple points and adjust according to glass speeds
Specifications
| Model Number | GB-GLASS-EDGESCAN |
| Measurement Reolution | 0.05 mm |
| Compatibility | Solar Glass,Float Glass,Low E GLass,Patterened Glass, Tinned and Dark Glasses |
| Production Line Compatibility | All Glass production and Tempering Lines. |
| Scalability /Width / Speed Limitation | Scalable With the speed and width of Glass line |
| Rugged System | Low maintenance optical - Non Contact System |
| Compute System | High End Compute System with GPU based real time computation |
| Easy of Use | Multiligual Intuitive and easy to user interface |
| Visualisation | 3D Data visualisation in realtiem with 3D maps |
| Easy integration | Compatibility with more than 99% Glass/Tempeering Lines |
| Control System + HMI | 21” Touch Screen with x64 Compute Architecture |
| System Controllers | GPU, Multicore systems and INternal FPGA's |
| Principle Illuminator | Phase Controller Coherent Lasers |
| Operating Environment | Non Clean Room, Non-Condensing |
| Operating Temperature | 0-80 degrees |
| Remote Control and Reprting [ IOT ] | Remote login & Maintenance - IOT based control and analytics |
