Gridbots Shuttl is an autonomous forklift which is ideally suited for matereial transport applicaions within warehouses or production plants and outdoors as well. It can conveniently move on asphalt,concrete and cemented pathways.
Shuttl has a payload capacity of 2 Tonne/ 3 Tonne /5 Tonne for various scenarios and can lift the items upto 3 Meter height. Shuttl is a counter balanced forklift and exhibits excellet stability on slopes and uneven floor surface
2/3/5 Tonne
Payload Capacity
UPTO 3 METERS
Lifting Height
0-1 M/SEC
Max Speed
8 HOURS
RUNTIME
2/3/5 Tonne Load capacity
Manages 3 Degree Inclines
3D Lidar and Vision based navigation
Upto 3 Meter Lift Height
Counterbalanced Configuation for excellent stability
Smart Motion plannning and obstacle avoidance
Automatic Pallet Identification
Automatic Charging?Battery Swap Option

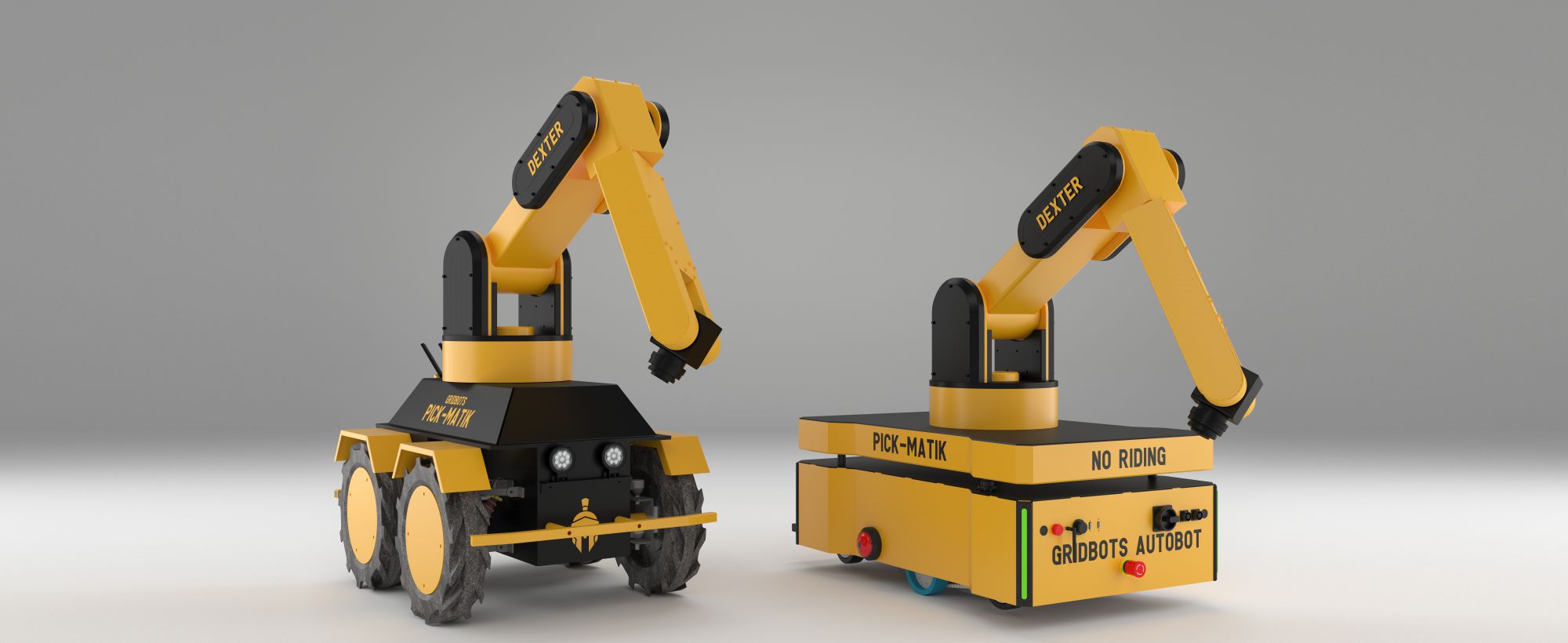

| Model Series | GB-PICK-MATIK |
| Payload Capacity | 1000/2000/3000 Kg |
| Runtime | Upto 8 Hours |
| Robotic Arm Reach | Upto 2.0 Meters |
| Turning Speed | 50 Degrees/Sec |
| Turning Radius | 0 mm |
| Max Speed | 1.5 M/Sec |
| Dimensions | 1100x700x480 mm [LxBxH] |
| Vehicle Weight | 300 kgs |
| Suspension | Passive |
| Ground Clearance | 40 mm |
| Built Material | Mild Steel |
| Paint/Coating | Powder Coating |
| Battery Charging | Auto |
| Battery Swap | Optional |
| Battery Chemistry | LiFePO4 |
| Fuses | All Power Sockets |
| Charging Time | 3 Hours |
| Power Monitoring | Active [IOT Based] |
| Ultrasonic Sensors | 4x |
| 3D Camera | 1x |
| Bumpers | Front |
| Safety Lidar | 2x [SICK or Equivalent] |
| E-Stop | 2x |
| Impact Sensor | 1x |
| Navigation | Fully Autonomous [Visual SLAM] |
| Location Accuracy | 20 mm [100x100 Meter Map] |
| Traffic Controller | Optional Package |
| Docking Accuracy | 15 mm |
| Docking Sensor | Laser |
| Slam Mode | Visual + Natural Features |
| IP Rating | 21 |
| Temperature | 0-60 Degrees |
| Humidity | 95%, Non- Condensing |
| On Board Computer | Multi Processor Batch |
| GPU | nvidia - 1080 |
| Off Board | i7-intel |
| Aux Controller | ARM-32 Bit |
