Nu - Dozer

NUCLEAR DEBRIS COLLECTING ROBOT

Home » Special » Nuclear Robotics » Nu-Dozer

Nu Dozer is a nuclear field operation robot which can work underwater - This robot can carry a payload of upto 75 kg and can move in very tight spaces.

This robot can remain underwater for very long durtions and can be conntrolled remotely to perform operations inside the water tanks which contain nuclear particles.

Technical Specifications for the NU DOZER - Please contact us in case you need any more info.

nu_dozer_main



NUCLEAR FIELD OPREATIONS ROBOT






Features


Battery Operated

Power Drive

Rugged and Automatic Mode

High Dose Rating

25 Kg Mode

Sensor POD

Data Recorder

3000 Hrs MTBF






Specifications


Model Number GB-NU DOZER
System Weight 25 Kg
Dimensions 1000x150x300 mm [LxBxH]
Onboard Accessories On Board - Motorised Showel
Payload 75 Kg
Drive System Differential Track based
Actuators Motorised 2 DOF Showel
Vision System Optional
Anti Collision System Bounce Sensors
Autonomous Operation Programmable
Temperature 0-75 Degree Centigrade
Supplied Cable Length 50 Meters
Power Single Phase - 1 KVA - 230 V A.C



Drawings

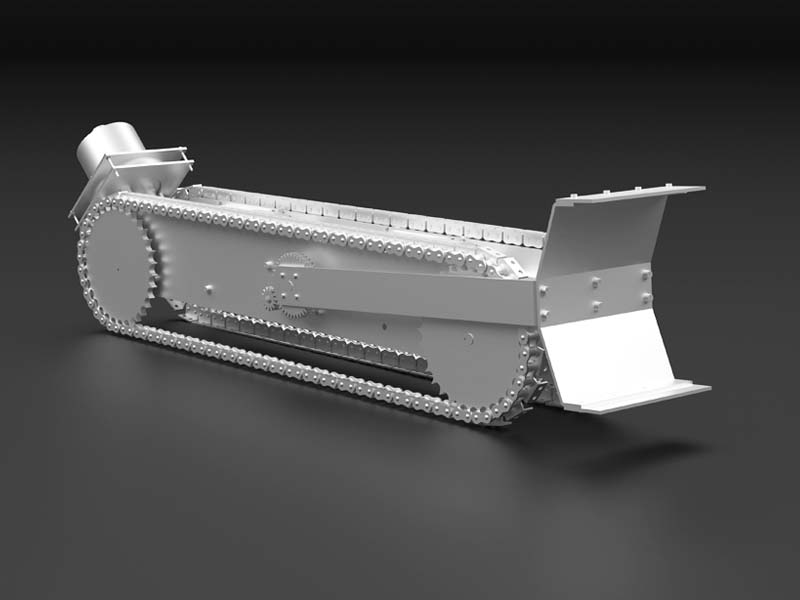

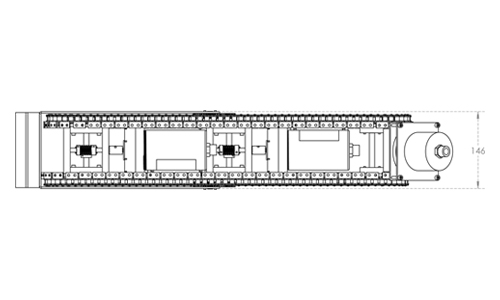

nu_dozer_1

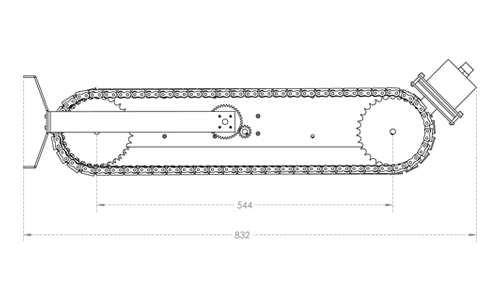

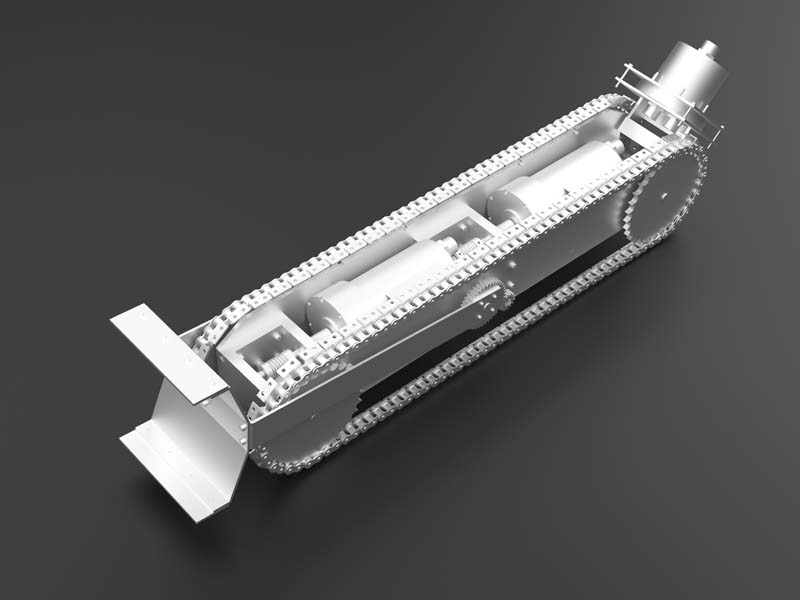

nu_dozer_2

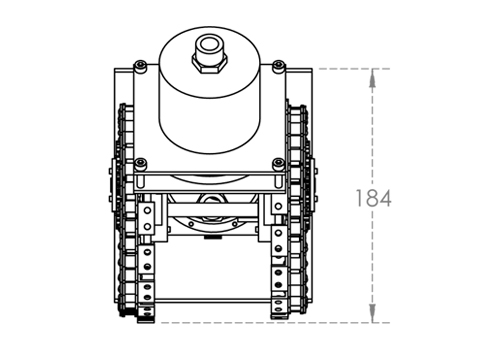

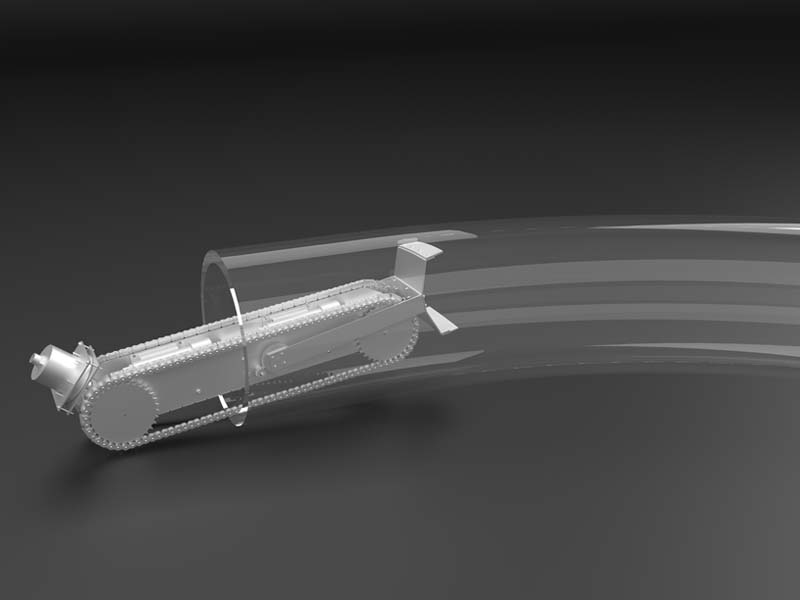

nu_dozer_3

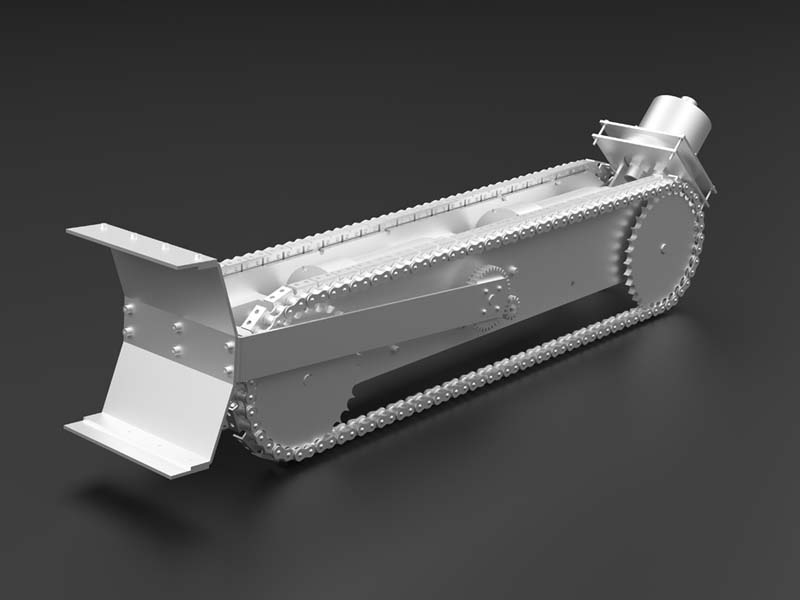

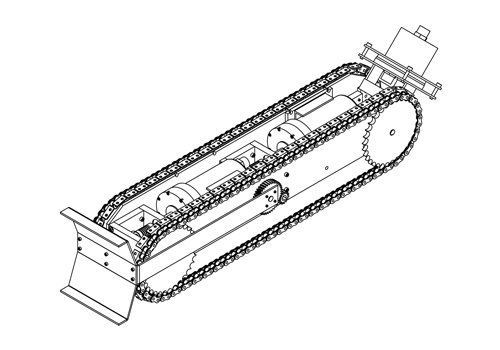

nu_dozer_4
