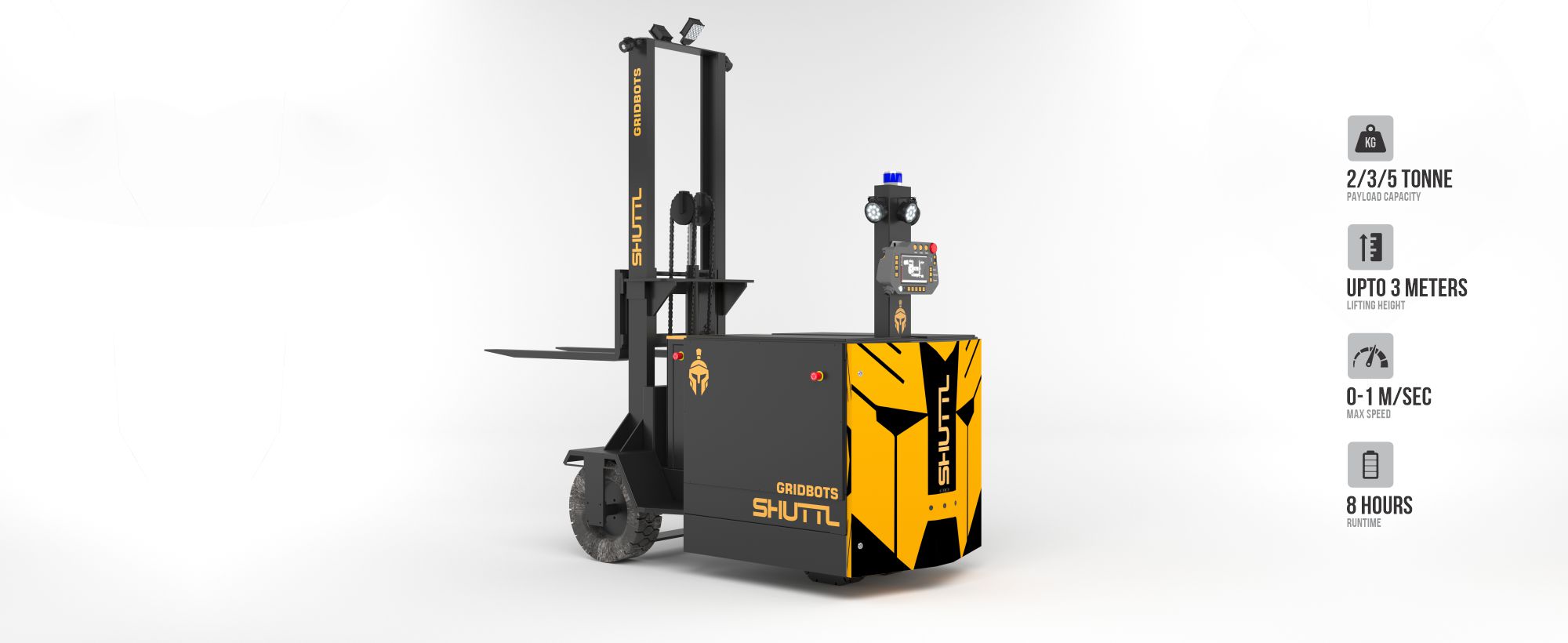

SHUTTL

AUTONOMOUS FORKLIFT

Gridbots Shuttl is an autonomous forklift which is ideally suited for matereial transport applicaions within warehouses or production plants and outdoors as well. It can conveniently move on asphalt,concrete and cemented pathways.

Shuttl has a payload capacity of 2 Tonne/ 3 Tonne /5 Tonne for various scenarios and can lift the items upto 3 Meter height. Shuttl is a counter balanced forklift and exhibits excellet stability on slopes and uneven floor surface

OUTDOOR/INDOOR SELF DRIVING FORKLIFT

2/3/5 Tonne

Payload Capacity

UPTO 3 METERS

Lifting Height

0-1 M/SEC

Max Speed

8 HOURS

RUNTIME

Features

2/3/5 Tonne Load capacity

Manages 3 Degree Inclines

3D Lidar and Vision based navigation

Upto 3 Meter Lift Height

Counterbalanced Configuation for excellent stability

Smart Motion plannning and obstacle avoidance

Automatic Pallet Identification

Automatic Charging?Battery Swap Option

Specifications

PERFORMANCE

Model Series	GB-SHUTTL
Payload Capacity	2000/3000/5000 Kg
Runtime	6 Hours
Lifting Height	Upto 3 Meters
Turning Speed	1 Meter/Sec
Turning Radius	2000 mm
Max Speed	1.5 M/Sec

CHASSIS

Dimensions	3500x1500x3000 mm [LxBxH]
Vehicle Weight	2700 kgs
Suspension	Passive
Ground Clearance	100 mm
Built Material	Mild Steel
Paint/Coating	Powder Coating

POWER SYSTEM

Battery Charging	Auto
Battery Swap	Optional
Battery Chemistry	LiFePO4
Fuses	All Power Sockets
Charging Time	3 Hours

SAFETY

TOF Sensors	4x
3D Camera	2x
Bumpers	Front+Back
Safety Lidar	2x [SICK or Equivalent]
E-Stop	2x
Impact Sensor	1x

NAVIGATION

Navigation	Fully Autonomous [Vison+3D Lidar Hybrid SLAM]
Location Accuracy	20 mm [100x100 Meter Map]
Trafﬁc Controller	Optional Package
Docking Accuracy	15 mm
Docking Sensor	Laser
Slam Mode	Visual + Natural Features

ENVIRONMENTAL

IP Rating	54
Temperature	0-60 Degrees
Humidity	95%, Non- Condensing

COMPUTER

On Board Computer	Multi Processor Batch
GPU	nvidia - 1080
Off Board	i7-intel
Aux Controller	ARM-32 Bit

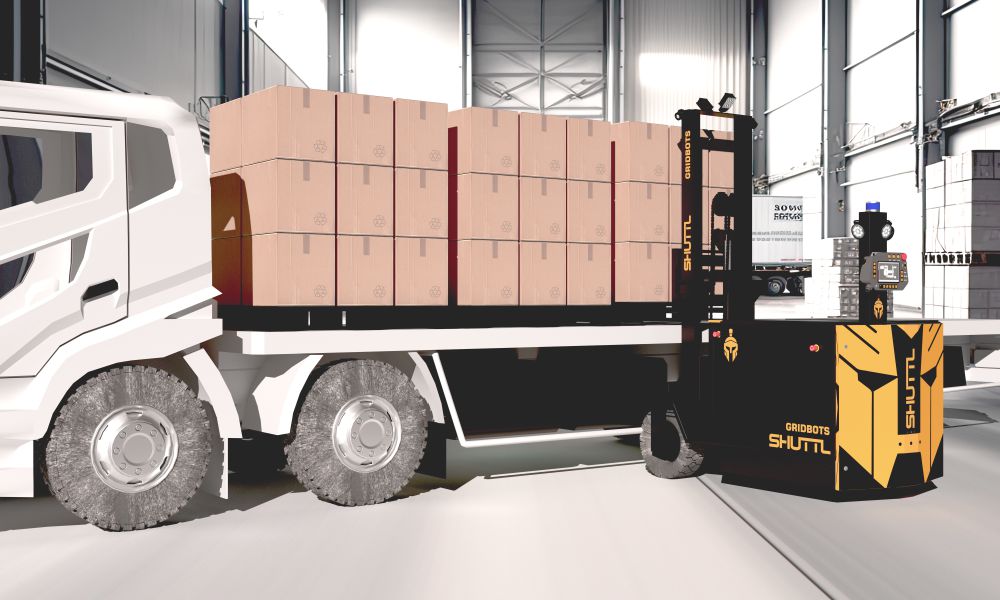

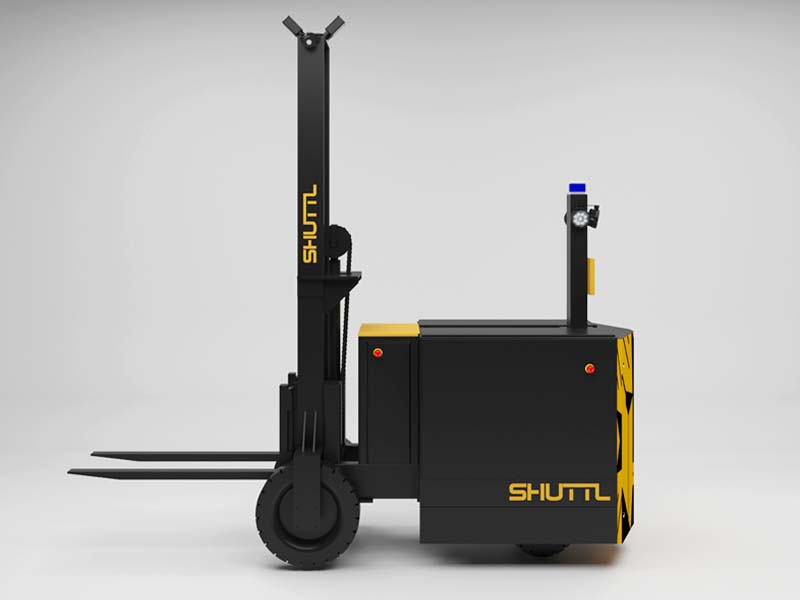

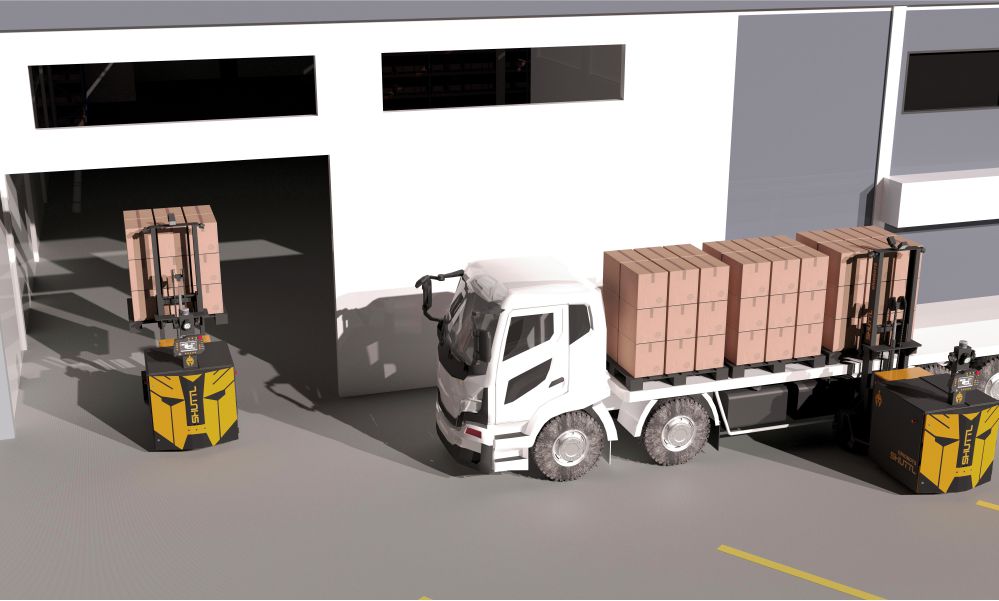

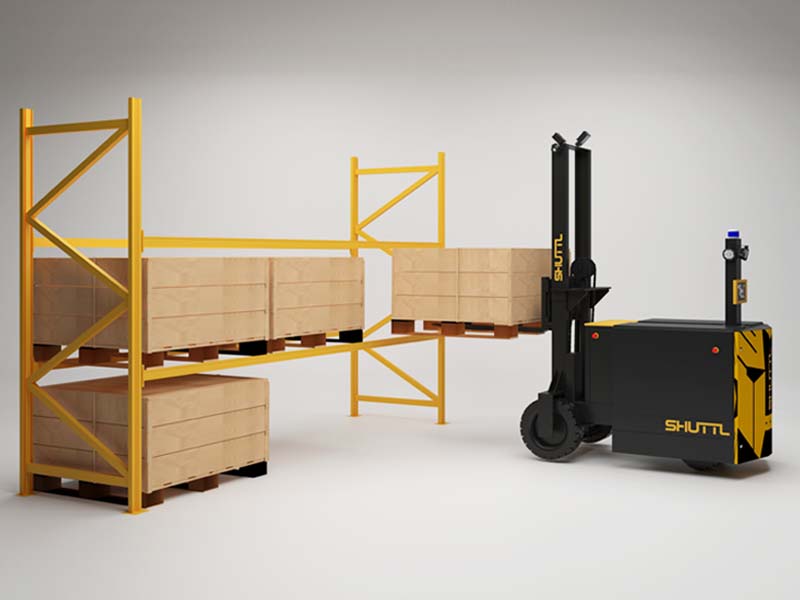

Gallery

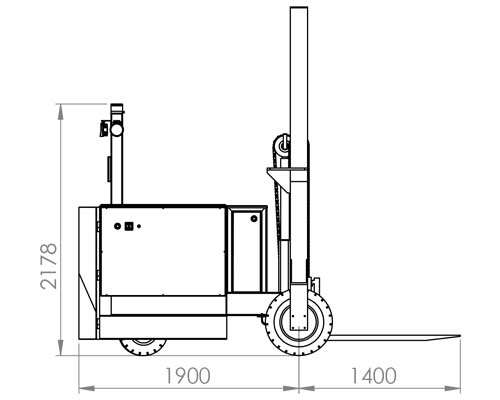

Drawings
