Autobot Series of Robots are the technological marvel in the Vision based Robotic Guidance - This technology enables robots to move inside warehouses with high precision in completely autonomous manner.

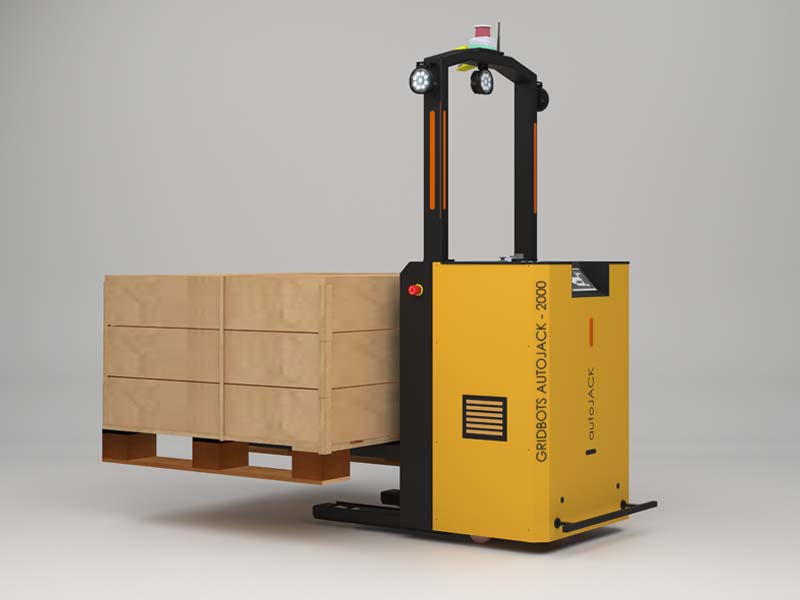

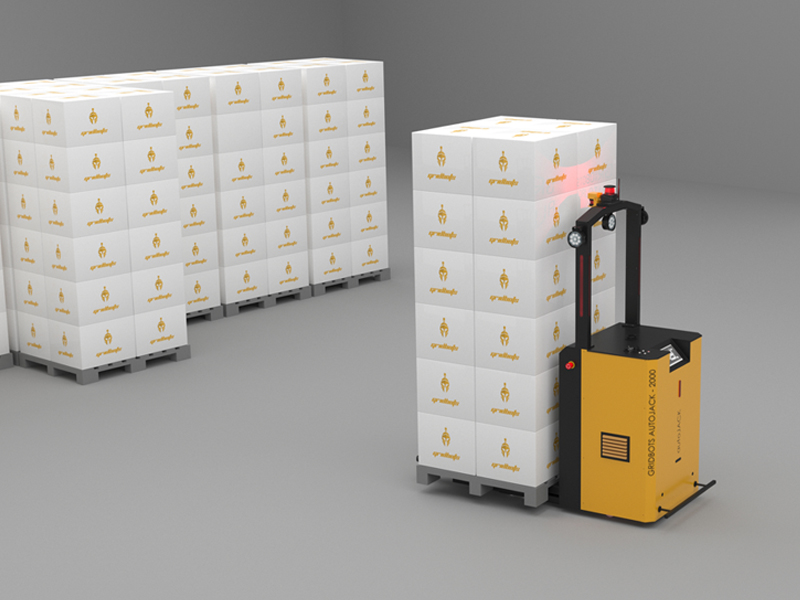

This Self driving auto jack robot is an industrial grade pallet transport robot which can carry a payload of 1000 kg/2000 kg autonomously.

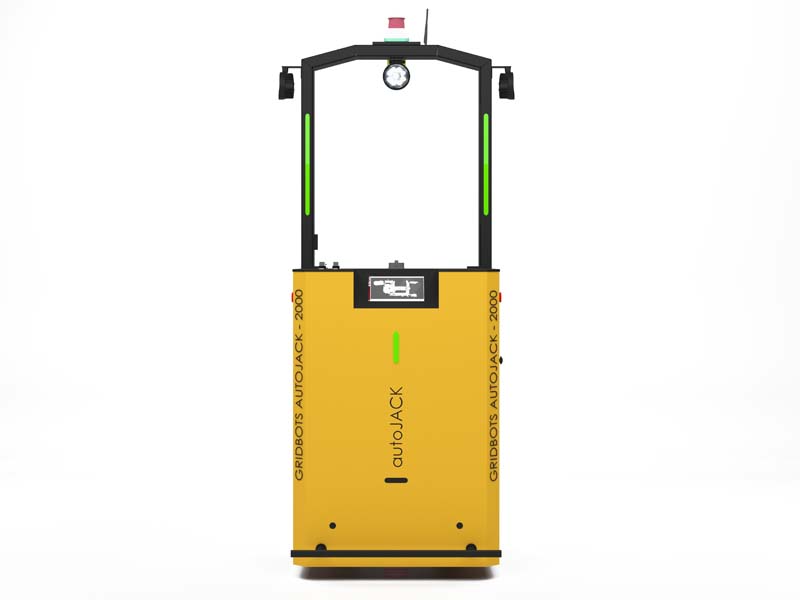

Autojack features twin 3D camera's mounted on front and rear.The rear 3D camera helps in accurate pallet localisation and safe align method to precisely jack the pallets from ground.The front 3D camera's provide precise realtime 3D volumetric mapping for precise automatic guidance with dynamic obstacle avoidance.
The Robot features minimum turning radius,Automatic System Health Monitoring and fleet management system for multiple AGV configuration.
Supports all standard pallets
Wifi Monitoring and Control
Natural Feature Navigation
Supports E - Maps
Dynamic Mapping while moving
4 Layer Safety Mechanism
3D Slam (Stereo Camera+Lidar)

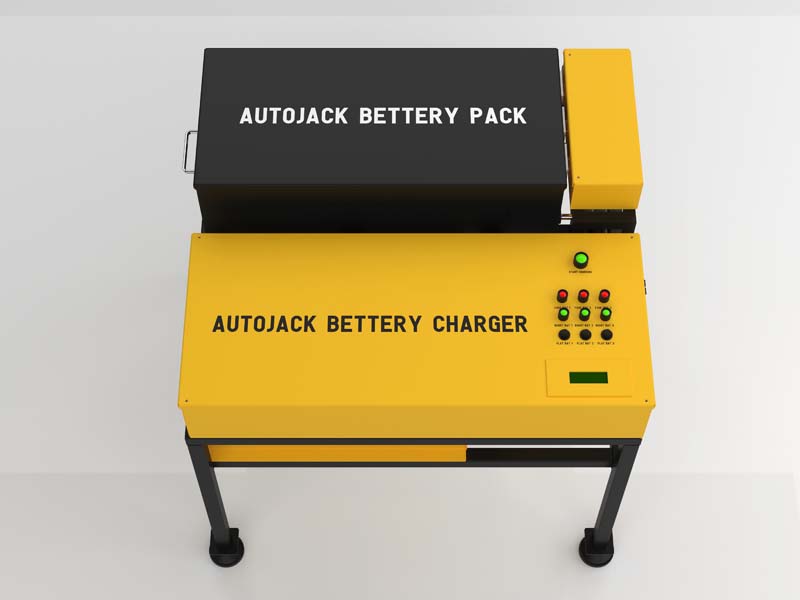

Automatic charging and Hot Battery Swap
IP 21 Weather Proof
| Model Series | GB-AUTOJACK2000 | GB-AUTOJACKHR2K |
| Payload Capacity | 2000/3000/5000 Kg | 2000/3000/5000 Kg |
| Runtime | Upto 8 Hours | Upto 8 Hours |

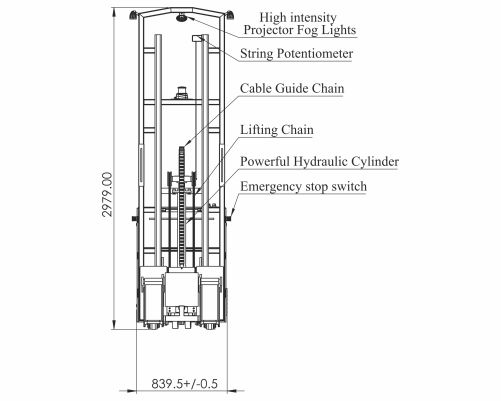

| Lifting Height | 0-1000 mm | 0-3000 mm |
| Turning Speed | 50 Degrees/Sec | 50 Degrees/Sec |
| Turning Radius | 0 mm | 0 mm |
| Max Speed | 1.5 M/Sec | 1.5 M/Sec |

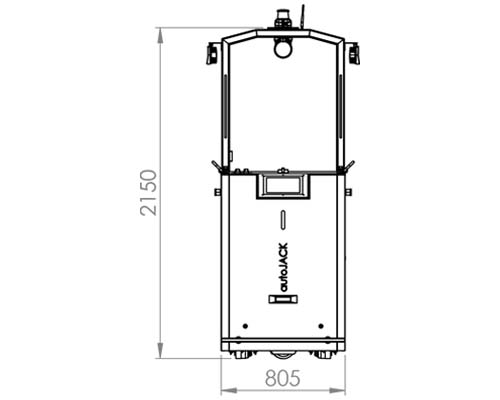

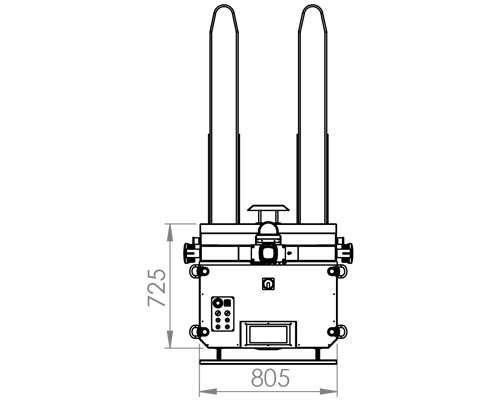

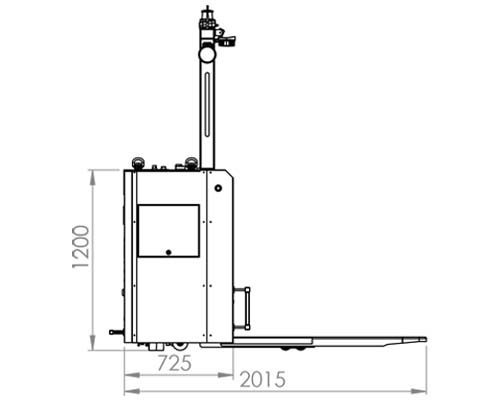

| Dimensions | 1800x1200x1500 mm [LxBxH] | 1800x1200x1500 mm [LxBxH] |
| Vehicle Weight | 600 kgs | 600 kgs |
| Suspension | Passive | Passive |
| Ground Clearance | 40 mm | 40 mm |
| Built Material | Mild Steel | Mild Steel |
| Paint/Coating | Powder Coating | Powder Coating |
| Battery Charging | Auto/Hot Swap | Auto/Hot Swap |
| Battery Rating | 2 Kwh | 2 Kwh |
| Battery Chemistry | LiFePO4 | LiFePO4 |
| Fuses | All Power Sockets | All Power Sockets |
| Charging Time | 3 Hours | 3 Hours |
| Power Monitoring | Active [IOT Based] | Active [IOT Based] |
| Ultrasonic Sensors | 4x | 4x |
| 3D Camera | 2x | 2x |
| Bumpers | Front+Back | Front+Back |
| Safety Lidar | 2x [SICK or Equivalent] | 2x [SICK or Equivalent] |
| E-Stop | 2x | 2x |
| Impact Sensor | 1x | 1x |
| Navigation | Hybrid SLAM [Natural + Visual] | Hybrid SLAM [Natural + Visual] |
| Location Accuracy | 20 mm [100x100 Meter Map] | 20 mm [100x100 Meter Map] |
| Traffic Controller | Centralized - Optional Package | Centralized - Optional Package |
| Docking Accuracy | 15 mm | 15 mm |
| Docking Sensor | Laser/2D Markers | Laser/2D Markers |
| Outdoor Option | Yes | Yes |
| IP Rating | 21 | 21 |
| Temperature | 0-60 Degrees | 0-60 Degrees |
| Humidity | 95%, Non- Condensing | 95%, Non- Condensing |
| On Board Computer | Multi Processor Batch | Multi Processor Batch |
| GPU | nvidia - 1080 | nvidia - 1080 |
| Off Board | i7-intel | i7-intel |
| Aux Controller | ARM-32 Bit | ARM-32 Bit |
