Hexamove

Precise Positioning Platform

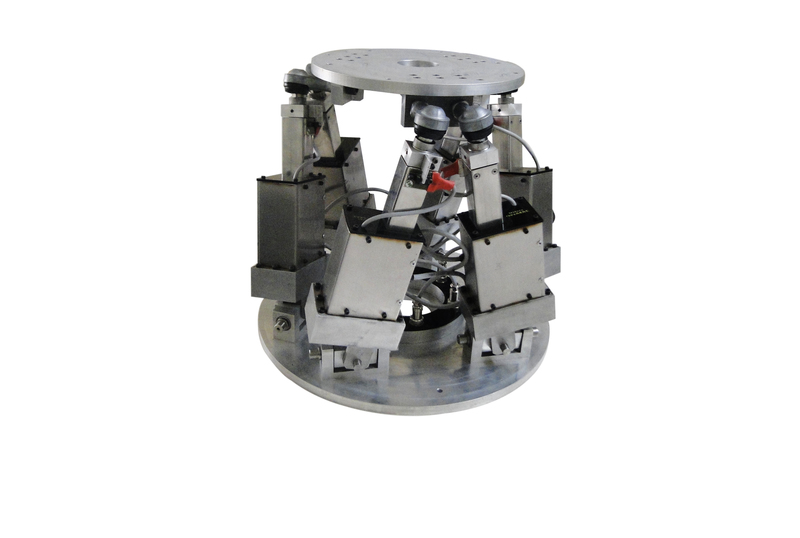

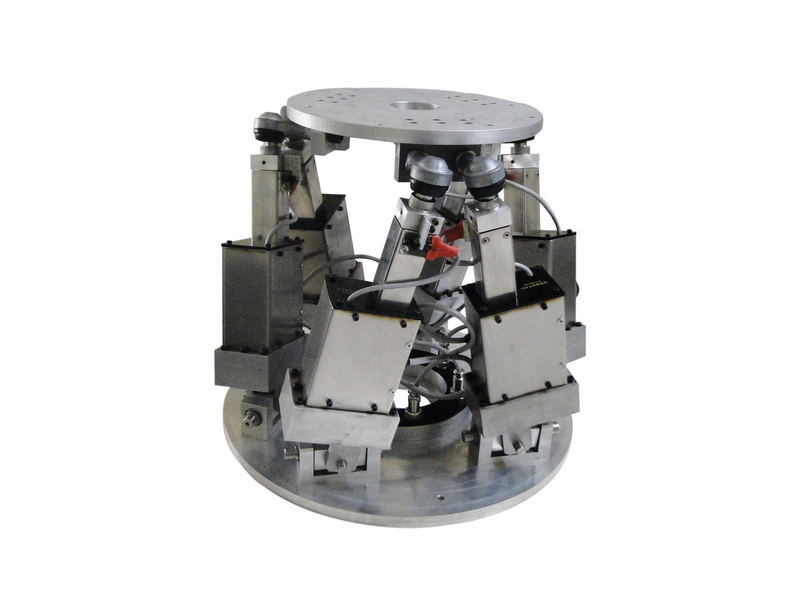

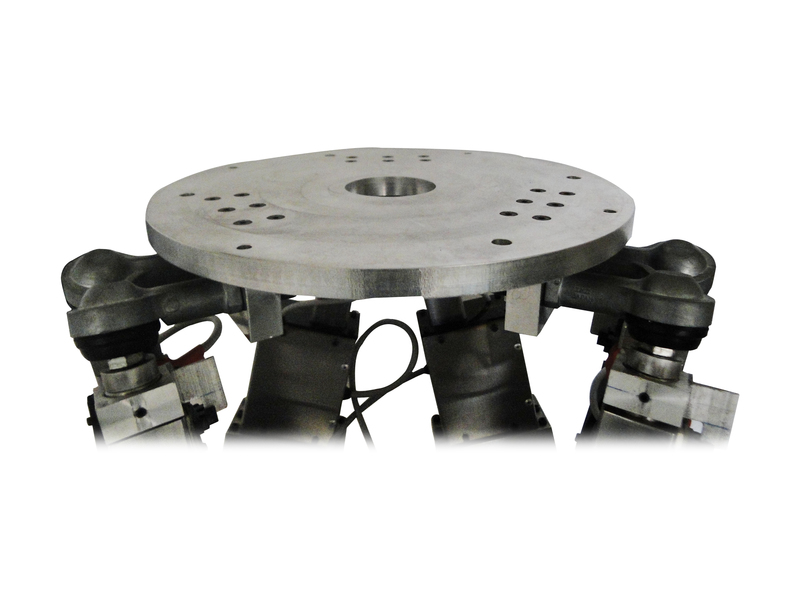

This is an industrial/research grade 6 DOF Positioning platform (Hexapod) which provides simultaneous motion in all 6 degrees of freedom — X, Y, Z and θX, θY, θZ.

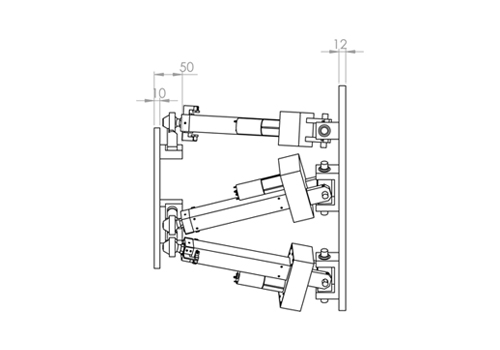

It can maintain high stiffness in all kind of situations (even power off) and can be mounted in wall,ceiling or base mount configuration

The minimum incremental linear motion is 5 Microns and rotational resolution of 12.5 uRadians can be achieved. Travel range is ±50 mm in X,Y and ±25 mm in Z, with payloads up to 20 kg supported.

The simultaneous motion is achieved due to the fact tha all the actuators work in parallel - To ensure rapid position change and high stiffness. The system can be used for parts machining - rf antenna alignment and positioning system.

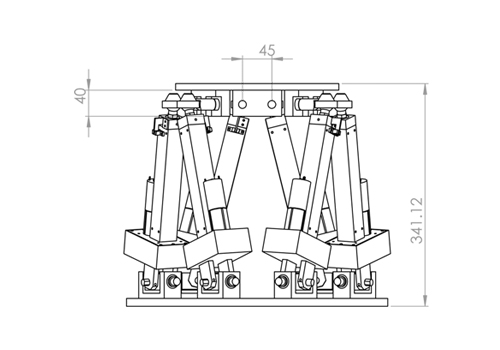

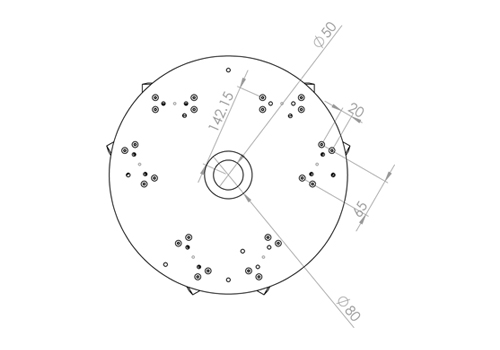

STEWART PLATFORM - 6DOF

5 Micron Linear / 12.5 uRad Rotational Resolution

10 kHz Maximum Servo Control Frequency

Virtual Pivot Point / Work-and-Tool Coordinate Systems

Detailed GUI for Utmost Control

Aluminum Make — Overall Mass ≤ 15 kg

High Rigidity and Stiffness

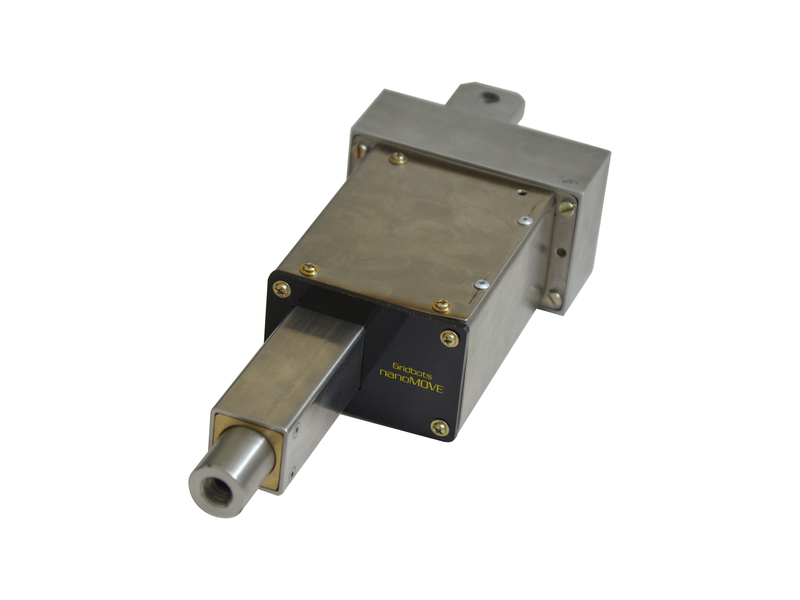

Brushless DC Servo Driven Actuators With Brakes

Tiny Footprint

Technical Specifications

Model Number	GB-HM-100
Active Axes	X \| Y \| Z \| θX \| θY \| θZ (6 DOF) or More
Travel Range in X, Y / Z	± 50 mm / ± 25 mm or Better
Rotation Range in θX, θY / θZ	± 15° / ± 30° or Better
Maximum Velocity	20 mm/s or Better
Maximum Angular Velocity	200 mrad/s or Better
Minimum Incremental Motion X, Y, Z	5 µm or Better
Minimum Incremental Motion θX, θY, θZ	12.5 µrad or Better
Unidirectional Repeatability in X, Y / Z	± 1.5 µm / ± 0.5 µm or Better
Unidirectional Repeatability in θX, θY / θZ	± 8 µrad / ± 25 µrad or Better
Integrated Sensor	Incremental Rotary Encoder or Better
Drive Type	Brushless DC Motor or Better
Maximum Load Capacity (base plate, any orientation)	10 kg or More
Maximum Load Capacity (base plate, horizontal)	20 kg or More
Maximum Holding Force (base plate, any orientation)	5 N or More
Overall Mass	≤ 15 kg or Better
Material	Aluminum or Better
Operating Temperature Range	0 to 50 °C or Better
Backlash in X, Y / Z	30 µm / 3 µm or Better
Backlash in θX, θY / θZ	30 µrad / 300 µrad or Better

6-DOF Capability Profile

Linear Travel Range (± mm)

Rotational Travel Range (± °)

Unidirectional Repeatability

Backlash by Axis (log scale)

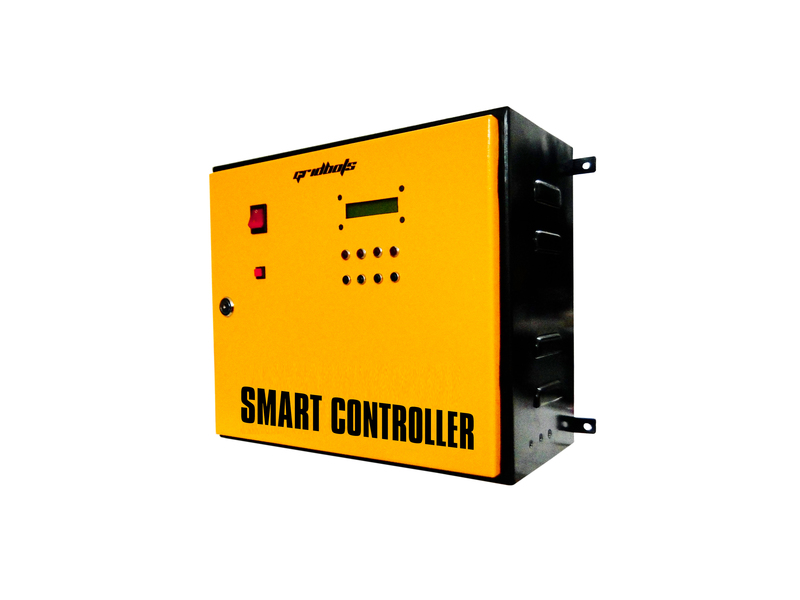

Controller Specifications

Axes / Channels	6 or More
Additional Axes	2 single axes or More
Processor	Intel Atom dual core (1.8 GHz) or More
Application-related Functions	Controller macros GCS \| Controller macros PIPython \| Data recorder \| Startup macro or More
Supported Sensor Signal	A/B quadrature, RS-422 \| BiSS-C or Better
Maximum Control Frequency (servo cycle)	10000 Hz or Better
Motion Types	Point-to-point motion with profile generator \| Cyclic transfer of target positions \| Area scan routines \| Gradient search routines \| Wave generator or More
Motion Coordination	Coordinated multi-axis motion \| User-defined coordinate systems \| Work-and-tool coordinate systems or More
Limit Switch Input	TTL or Better
Communication Interfaces	RS-232 \| TCP/IP \| USB (only for manual control units) or More
Software - APIs	C, C++, C# \| MATLAB \| NI LabView \| Python or More
Analog Inputs / Digital Inputs	4 or More
Connector Hexapod Power Supply	M12 4-pole (f) or Better
Connector Hexapod Data Transmission	HD D-sub 78 (f) or Better
Operating Voltage	24 V (ext. power adapter included) or Better
Operating Temperature Range	5 to 40 °C or Better
Overall Mass	2800 g or Better
Advanced Computing Device	Intel Core i7, 13th Gen processor or better, 1TB SSD, 16GB RAM (DDR5), 6 GB Graphic Card (DDR6), tower model PC. Includes a 27-inch monitor, wireless Keyboard & Mouse (same OEM and colour for uniformity), Desktop Table and revolving Chair, or Better
Warranty	At least Two-Year standard warranty with lifetime Support
