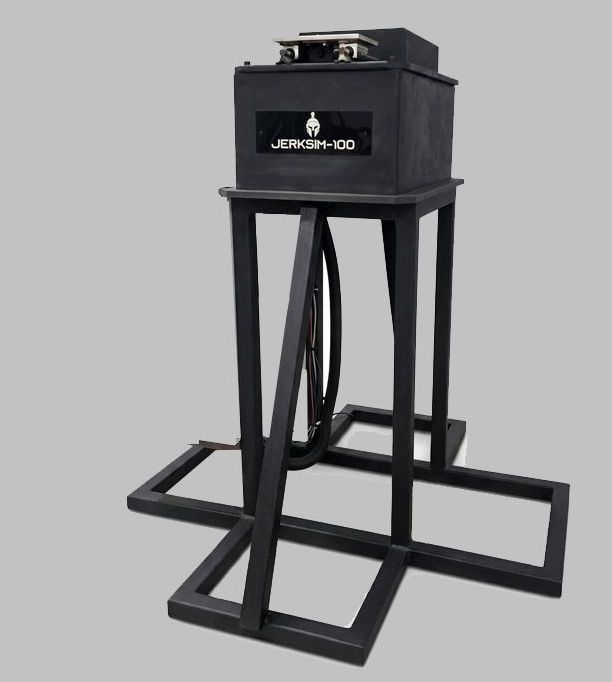

JerkSIM

Single-Axis Jerk Platform

This is an industrial/research grade single-axis electromechanical jerk & shock platform that delivers high-amplitude acceleration pulses along one programmable linear axis - for shock testing, transient response studies, drop-test replication and component qualification.

A direct-drive electromechanical actuator generates peak acceleration up to 500 g for payloads up to 5 kg, over a programmable stroke of 0 - 100 mm and an operating frequency range up to 3 kHz.

The axis can be variably mounted - horizontal, inclined or vertical - so the same platform reproduces gravity-aligned or off-axis shock events on demand.

A closed-loop controller shapes the pulse in real time, synthesising classical shock waveforms (half-sine, sawtooth, trapezoid, square), random vibration and shock-response-spectrum profiles, with stroke and frequency commanded directly up to 3 kHz.

SINGLE-AXIS JERK PLATFORM

Peak Acceleration up to 500 g

Payload up to 5 kg

Programmable Stroke 0 - 100 mm

Operating Frequency up to 3 kHz

Direct-Drive Electromechanical Actuator - Oil-Free

Variable Mounting Angle - Horizontal / Inclined / Vertical

Half-Sine / Sawtooth / Trapezoid / SRS Waveforms

Closed-Loop Control with Abort & Over-Travel Limits

Technical Specifications

Model Number	GB-JS-500
Configuration	Single-Axis (1 DOF linear) Electromechanical Jerk / Shock Platform
Active Axis	1 (variable-angle linear axis) or More
Actuation	Direct-Drive Electromechanical Linear Actuator (ironless) or Better
Peak Acceleration	500 g (4905 m/s²) or Better
Continuous Acceleration (sine RMS)	80 g or Better
Rated Payload	up to 5 kg or More
Programmable Stroke	0 - 100 mm or Better
Maximum Velocity	3 m/s or Better
Operating Frequency Range	DC - 3000 Hz or Better
Maximum Jerk	> 1 × 10&sup6; g/s or Better
Acceleration Resolution	0.1 g or Better
Position Resolution	1 µm or Better
Peak-g Repeatability	± 2% or Better
Mounting	Variable angle 0 - 90° (horizontal, inclined, vertical)
Table / Mounting Interface	120 mm dia., M6 grid or Better
Integrated Sensor	Linear encoder + table accelerometer or Better
Overall Mass	≤ 250 kg or Better
Operating Temperature Range	5 to 40 °C or Better
Supply / Rated Power	3-phase 400 VAC, 50/60 Hz / 8 kW or Better
Protection Rating	IP20 (cabinet) or Better

Parameter	Range	Notes
Classical Shock Pulses	Half-sine, Sawtooth (terminal-peak), Trapezoid, Square	Programmable peak & duration
Pulse Duration	0.2 - 20 ms	Pulse-shape dependent
Peak Acceleration (pulse)	up to 500 g	Payload & duration dependent
Sine	Fixed / Sweep / Dwell	DC - 3 kHz
Random Vibration	PSD-defined	up to 3 kHz
Shock Response Spectrum (SRS)	Synthesis & analysis	Wavelet / damped-sine
Transient Capture / Replay	Field-recorded events	Time-domain replication

Operating Envelope (accel vs frequency)

Peak Acceleration vs. Payload

Shock Pulse Profiles

Stroke vs. Frequency

Jerk Capability vs. Pulse Rise Time

Maximum Peak g by Waveform

Max Payload at 500 g vs. Mounting Angle

Pulse Step Response (settling)

Power Draw vs. Test Intensity

Controller Specifications

Type	Real-time closed-loop shock & vibration controller
Drive Channels / Inputs	1 drive + 4 accelerometer inputs or More
Processor	Real-time CPU, Intel Core i7 (13th Gen) class or More
Maximum Output / Control Frequency	3000 Hz or Better
Sampling Rate	25.6 kHz or Better
Command Latency	≤ 1 ms end-to-end or Better
Control Modes	Classical shock \| SRS \| Sine (fixed / sweep / dwell) \| Random \| Sine-on-Random \| Transient replay or More
Pulse Shapes	Half-sine \| Sawtooth \| Trapezoid \| Square \| User-defined or More
Profile Parameters	Programmable stroke (0 - 100 mm), peak g, duration, rise time or More
Communication Interfaces	TCP/IP \| Ethernet \| USB \| RS-232 or More
Software - APIs	C, C++, C# \| MATLAB \| NI LabVIEW \| Python or More
Analog Inputs / Digital I/O	4 AI / 16 DI / 16 DO or More
Safety	Abort limits, over-travel, over-current, dual-channel interlock or Better
Operating Voltage	3-phase 400 VAC (ext. drive cabinet included) or Better
Operating Temperature Range	5 to 40 °C or Better
Advanced Computing Device	Intel Core i7, 13th Gen processor or better, 1TB SSD, 32GB RAM (DDR5), 8 GB Graphic Card (GDDR6), tower model PC. Includes a 27-inch monitor, wireless Keyboard & Mouse (same OEM and colour for uniformity), Desktop Table and revolving Chair, or Better
Warranty	At least Two-Year standard warranty with lifetime Support
