MotionSIM

6 DOF Motion Platform

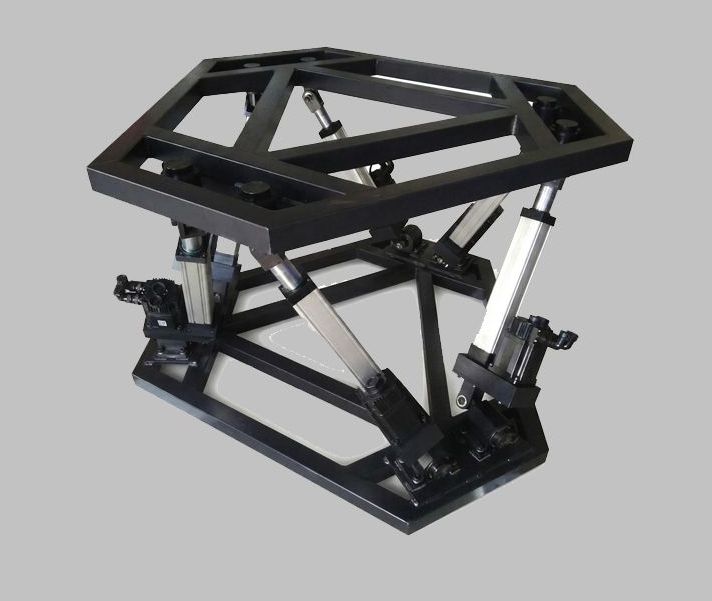

This is an industrial/research grade 6 DOF Motion platform (Stewart–Gough Hexapod) which provides simultaneous, high-dynamic motion in all 6 degrees of freedom — Surge (X), Sway (Y), Heave (Z) and Roll (θX), Pitch (θY), Yaw (θZ).

Driven by six electric roller-screw servo actuators, it reproduces real-world motion cues with low latency for flight, driving and marine simulators, VR/entertainment rigs, vibration testing and hardware-in-the-loop research.

Travel range is ±281 mm in surge/sway and ±254 mm in heave, with ±24° of rotation, peak acceleration beyond 0.8 g and a motion bandwidth up to 10 Hz, supporting payloads up to 1000 kg (1500 kg max).

The simultaneous motion is achieved due to the fact that all the actuators work in parallel - sharing the load to ensure rapid pose change and high stiffness. A real-time controller running classical and optimal washout (motion-cueing) algorithms maps simulator dynamics into the platform envelope at a 1 kHz servo rate.

MOTION PLATFORM 3-6 DOF

Full 6 DOF - Surge / Sway / Heave / Roll / Pitch / Yaw

1 kHz Real-Time Servo & Motion-Cueing Loop

Peak Acceleration > 0.8 g / Bandwidth up to 10 Hz

Classical & Optimal Washout Filters Built-In

Electric Roller-Screw Actuators - Oil-Free, Low-Maintenance

1000 kg Rated / 1500 kg Max Payload

Fail-Safe Brakes & Dual-Channel Safety (PLd / SIL2)

SDK for C/C++, C#, Python, MATLAB/Simulink & LabVIEW

Technical Specifications

Model Number	GB-MS-1000
Kinematic Configuration	6-6 Stewart–Gough Parallel Platform (Hexapod)
Active Axes	Surge X \| Sway Y \| Heave Z \| Roll θX \| Pitch θY \| Yaw θZ (6 DOF) or More
Actuation	6 × Electric Brushless-Servo Roller-Screw Actuators
Travel Range in Surge, Sway / Heave	± 281 mm / ± 254 mm or Better
Rotation Range in Roll, Pitch / Yaw	± 22°, ± 24° / ± 24° or Better
Maximum Linear Velocity (Surge, Sway / Heave)	500 mm/s / 300 mm/s or Better
Maximum Angular Velocity	30°/s (Roll, Pitch) / 40°/s (Yaw) or Better
Maximum Linear Acceleration	0.6 g (Surge, Sway) / 0.8 g (Heave) or Better
Maximum Angular Acceleration	300°/s² (Roll, Pitch) / 400°/s² (Yaw) or Better
Motion Bandwidth	Up to 10 Hz or Better
Position Resolution (platform)	5 µm / 1 µrad or Better
Integrated Sensor	23-bit Absolute Encoder (per actuator) or Better
Drive Type	Brushless AC Servo Motor with Fail-Safe Brake or Better
Rated Payload	1000 kg or More
Maximum Payload	1500 kg or More
Top Platform / Base Diameter	1800 mm / 2200 mm or Better
Height (Retracted / Extended)	1450 mm / 1950 mm or Better
Overall Mass (excl. payload)	≤ 1200 kg or Better
Material	Steel base frame, Aluminum platform or Better
Operating Temperature Range	5 to 40 °C or Better
Supply / Rated Power	3-phase 400 VAC, 50/60 Hz / 15 kW or Better
Protection Rating	Actuators IP54 / Cabinet IP20 or Better

Degree of Freedom	Excursion	Max Velocity	Max Acceleration
Surge (X - longitudinal)	± 281 mm	± 500 mm/s	± 0.6 g (5.9 m/s²)
Sway (Y - lateral)	± 263 mm	± 500 mm/s	± 0.6 g (5.9 m/s²)
Heave (Z - vertical)	± 254 mm	± 300 mm/s	± 0.8 g (7.8 m/s²)
Roll (θX)	± 22°	± 30°/s	± 300°/s²
Pitch (θY)	± 24°	± 30°/s	± 300°/s²
Yaw (θZ)	± 24°	± 40°/s	± 400°/s²

6-DOF Motion Envelope (normalized)

Linear Excursion (± mm)

Rotational Excursion (± °)

Maximum Velocity by DOF

Maximum Acceleration by DOF

Heave Frequency Response (Bode magnitude)

Payload vs. Peak Acceleration

Actuator Force-Velocity Envelope

Heave Step Response (settling)

Power Draw vs. Motion Intensity

Controller Specifications

Axes / Channels	6 coordinated + 2 auxiliary or More
Processor	Real-time CPU, Intel Core i7 (13th Gen) class or More
Servo Update Rate	1000 Hz (motion loop) \| 2000 Hz (current loop) or Better
Command Latency (host to motion)	≤ 3 ms end-to-end or Better
Kinematics	Real-time inverse + forward kinematics, virtual pivot point or More
Motion-Cueing Algorithms	Classical washout \| Optimal (filter-based) \| Adaptive \| User-defined or More
Motion Coordination	Coordinated multi-axis motion \| World / platform / tool coordinate systems or More
Motion Types	Point-to-point profiles \| Cyclic streaming of target poses \| Sine / sweep / replay \| Wave generator or More
Communication Interfaces	UDP/IP \| TCP/IP \| EtherCAT \| CAN \| RS-232 or More
Software - APIs	C, C++, C# \| MATLAB / Simulink \| NI LabVIEW \| Python or More
Analog Inputs / Digital Inputs	4 AI / 4 AO / 16 DI / 16 DO or More
Safety	Dual-channel E-stop, envelope & velocity limiting, PLd / SIL2 or Better
Operating Voltage	3-phase 400 VAC (ext. drive cabinet included) or Better
Operating Temperature Range	5 to 40 °C or Better
Advanced Computing Device	Intel Core i7, 13th Gen processor or better, 1TB SSD, 32GB RAM (DDR5), 8 GB Graphic Card (GDDR6), tower model PC. Includes a 27-inch monitor, wireless Keyboard & Mouse (same OEM and colour for uniformity), Desktop Table and revolving Chair, or Better
Warranty	At least Two-Year standard warranty with lifetime Support
