Gridbots ROBO-PAINT

AUTOMATED ROBOTIC PAINT CELL


Gridbots Robo-Paint is an automatic painting solution for batch painting of products which needs to be painted automatically in a pre-defined manner. The system can be custom extended to any size and can accommodate any size of product which requires custom painting maneuvers.

The paint booth is fitted with multiple 3D Scan sensors to ensure that the surface of the product to be painted is properly dimensioned and scanned before paint process begins - Making it free from manual programming cycles.

The under carriage can carry product upto 1 tonnes with fast speeds and with high precision stop and go slides.The system can be integrated with the blasting and coating solution to ensure that blasting, coating and painting system can work in tandem.

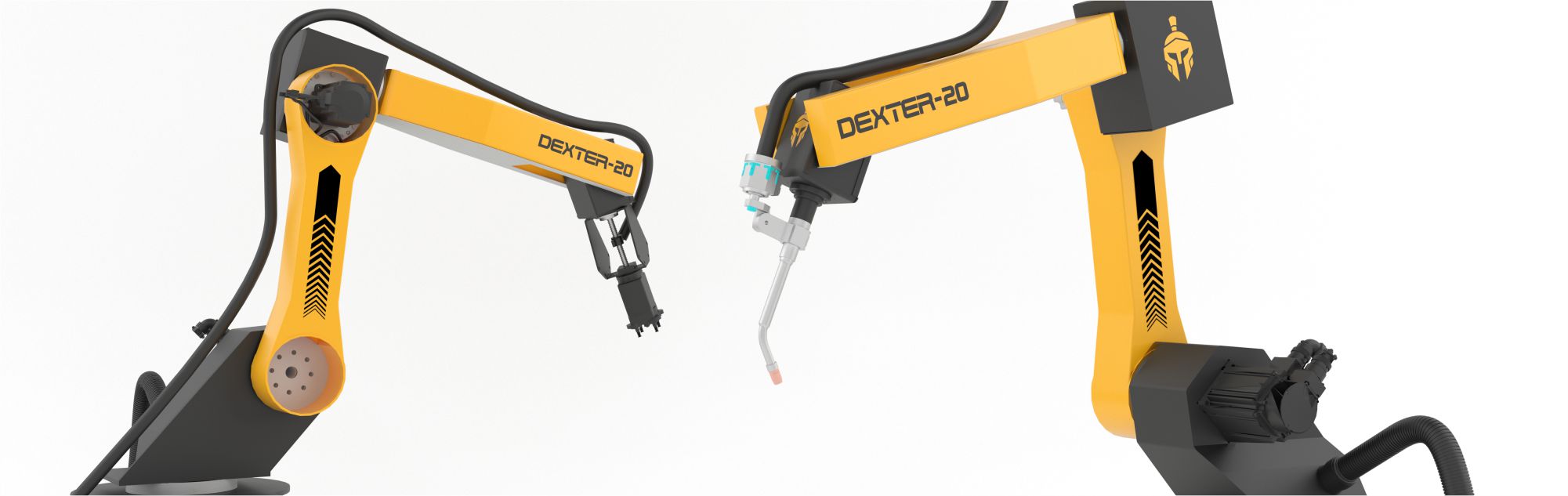

Multiple robots as per the requirement of the painting speed and product geometry can be fitted on the line to ensure the uptime and productivity.




Features

3D Surface Scanner

Automatic Paint Nozzles Selection

Water, Epoxy, Waterless Paint Support

Automated Cycle Repeat

Inner and Outer Surface Painting Support

Post Paint - Finish Inspection Option

Highly compact system

Standard Part upto 6x3x3 Meter Support





Specifications

PERFORMANCE

11 Axis Robotic System 3 Axis Linear/6 Axis ASrticualted
Linear Speed Upto 0.5 M/Sec
System Dimensions 20x8x8 Feet
Air Pressure Required Upto 8 Bar@5 CFM
Painting Mode Water/Waterless/Powder Spray
Booth Transport Option Yes - Via Truck Loader

CHASSIS

Dimensions 20x10x10 Feet[LxBxH]
Weight 700 Kgs
Suspension Passive
Ground Clearance 900 MM
Booth Built Material Mild Steel
Internal Surface Coating Anti-Sticking Teflon coating

POWER SYSTEM

Power Requirement Single Phase AC
Power Rating 3 Kw System
Battery Power Yes - Optional
Power Consumption Metered and Monitored
System Helath Monitoring Active [IOT Based]
Material Carriage Support Yes - Upto 2 Tonne puller

SAFETY

Laser Curtain Sensors 6 Sides
Interlocks All Axis
Safety Lidar 2x [SICK or Equivalent]
E-Stop 4 Sides
Camera Moinitoring Yes - 8 Cameras
Collision Detection with Workpiece Yes - TOF Based - On TCP

3D RECONSTRUCTION

Technology Stereo Vision/Optional TOF Sensor/Optional Laser Projector
Model Accuracy +-10 mm
3D Capture Speed 1 Cubic Meter per minute
Physical to Digital Model Transfer Yes

ENVIRONMENTAL

IP Rating 55
Temperature 0-60 Degrees
Humidity 90%, Non- Condensing
