Gridbots ROBO-WELD

AUTOMATED ROBOTIC WELDING CELL

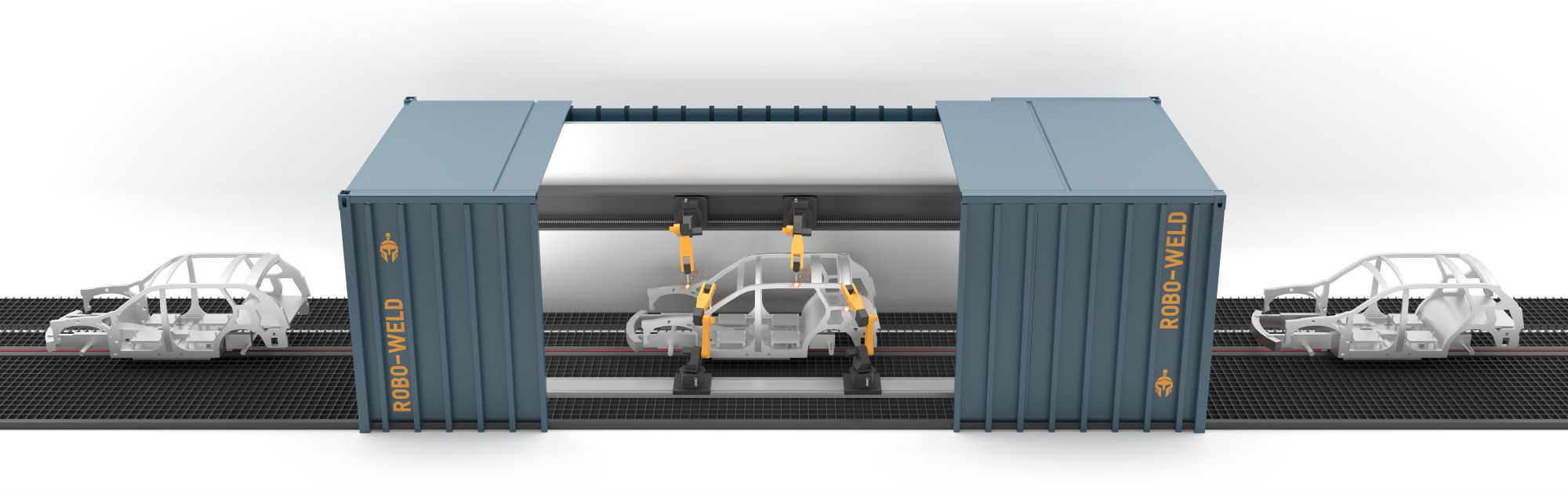

Gridbots Roboweld is automated Welding cell which incoporates 9 - 12 Axis rugged robotic arms and positioners to automate the task of batch welding with high accuracy and repeatability.

The system utilises high precision robotic arms with extended capabilities to achieve two objectives - First one being the high repeatability in the process and second is the cycle time for the process is drastically reduced. The multi-axis robotic arms can reach to places where its difficult to weld and scan and automates the complete process.

The system can operate fully autonomously and utilises state of art 3D image capture system to form the 3D structure of the objects to be welded. The system then self programs its trajectories to ensure optimum weld and finish.




Features

High Speed Welding

3D Scanner Guided Trajectory Calculation in realtime

High Precision and Repeatability

Automated Batch production mode

Post Welding quality Inspection

Multi Axis Articualted robots with best in class reach

Highly compact system

Supports MIG Weld guns





Specifications

PERFORMANCE

9/12/15 Axis PLatform 3 Linear/6/9/12 Rotaty Axis
Linear Speed Upto 0.1 M/Sec Weld Speed
System Dimensions 20x8x8 Feet/Cutomisable
Air Pressure 8Bar@5CFM
Weld Weave Modes Stringer Bead,Zigzag Weave,Circular Weave,J-Weave,C-Weave,Figure-8 Weave,Wiggle or Oscillating Weave
Transport Capable Yes - Via Truck Traler

CHASSIS

Dimensions 20x10x10 Feet[LxBxH]
Weight 750 Kgs
Suspension Passive
Ground Clearance 900 MM
Built Material Mild Steel
Fume Extractor Antix-500 Sp

POWER SYSTEM

Power Requirement Single Phase +3 Phase AC
Power Rating Upto 3 Kw System
IOT System Yes - Health and Performance Monitor
Power Consumption Metered and Monitored
Performance Monitoring Active [IOT Based]
Powered Conveyor Servo Driven + Jigs

SAFETY

Curtain Sensors 4 Laser Curtain
Interlocks All Axis
Safety Lidar 2x [SICK or Equivalent]
E-Stop 4x
Over Current Yes - All Axis
Collision with Workpiece Yes - TOF Based - On TCP

3D RECONSTRUCTION

Technology Stereo Vision/Optional TOF/Optional Laser Projector
Model Accuracy +-5 mm
3D Capture Speed 1 Cubic Meter per minute
Physical to Digital Model Generation Yes - Direct Capture to CAD to CAM Module

ENVIRONMENTAL

IP Rating 42
Temperature 0-60 Degrees
Humidity 95%, Non- Condensing
