Induction sealing is common bottle sealing process for in Food, FMCG and Pharma industry. The only issue with this sealing process is that you need to monitor the sealing efficiency by putting manual labor just after the bottle capping process. The manual labor randomly picks the bottle, open the cap and check the sealing quality. However this is not foolproof system and this is where Gridbots Induction Seal Inspection System is recommended.

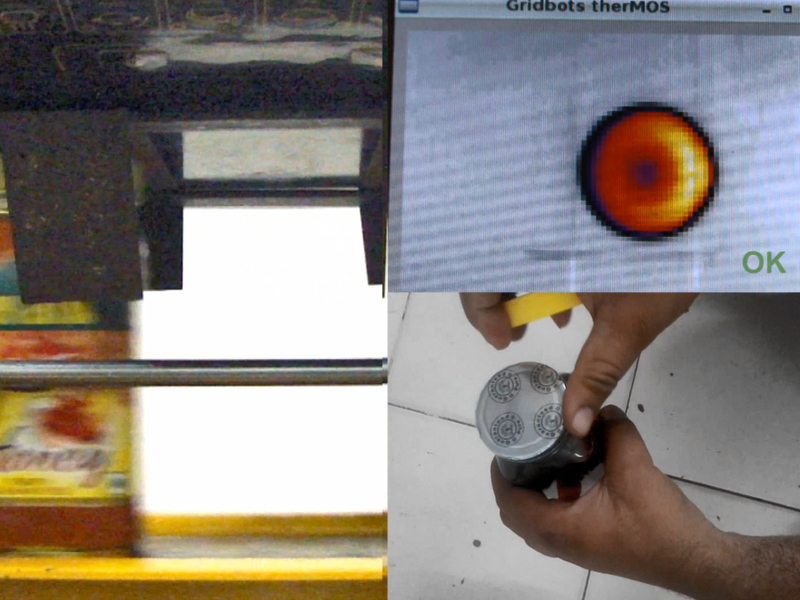

The system uses highly advanced thermal sensors and complex image processing algorithms to determine the induction seal quality without the need of bottle cap opening. It can detect various defects such as Detect critical defects in induction sealing of Jars such as under heating, damaged lip, missing foil, bend foil, over burnt foil etc as shown below.
The system is modular with each module gives 60 BPM inspection speed.
Induction Seal Inspection System
100% Inspection of items
High Speed Non Contact Inspection
Detect critical defects in induction sealing
Inspection Speed – 60 BPM
Integrated Rejection System
Data Logging with Images
Non Clean Room Environment

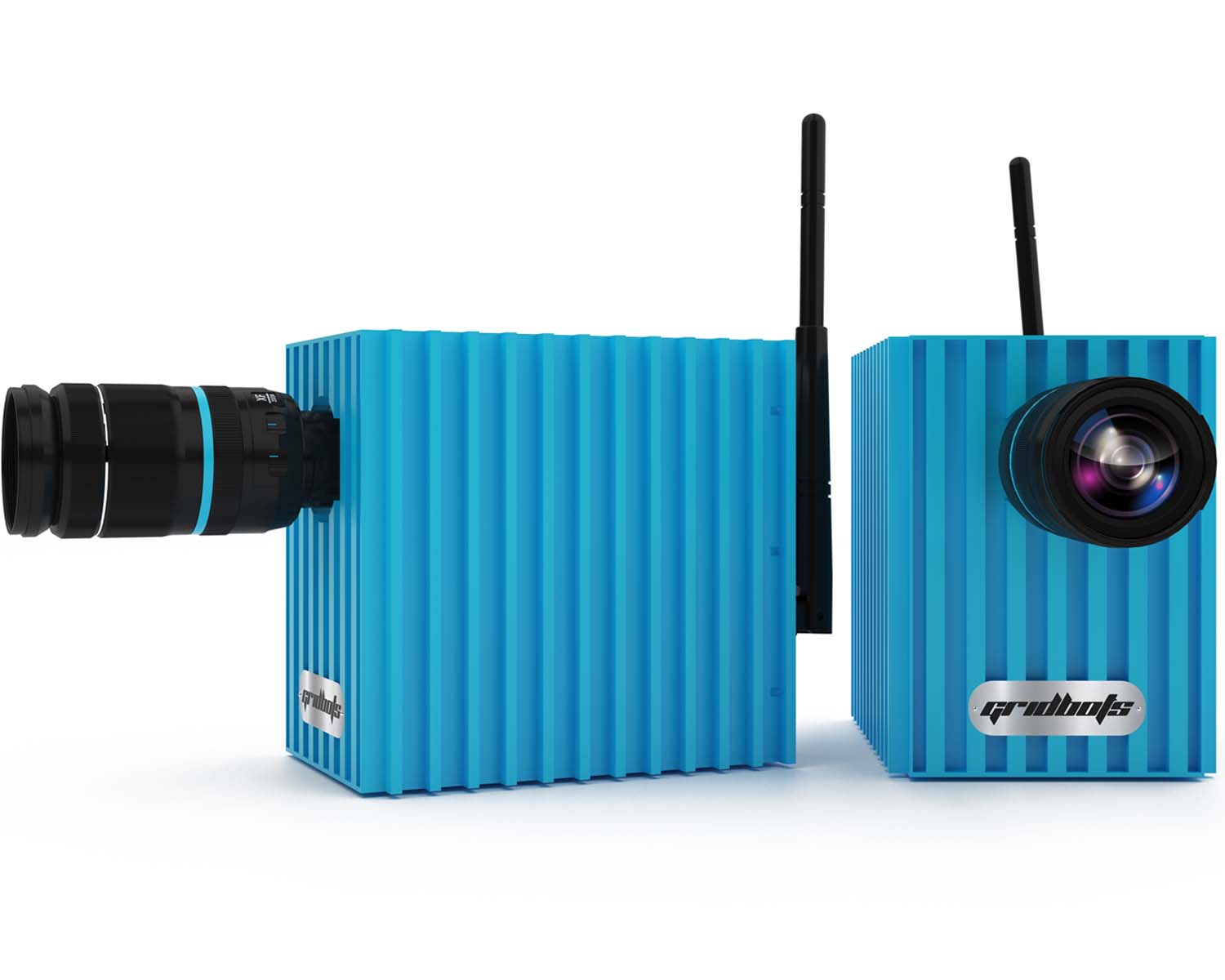

Series | GB-therMOS |
Imager Dimensions | 50 mm x 50 mm x 50 mm |
Computing Unit | Quad Core |
Read Rate | Upto 60 Hz |
Thermal Sensitivity | Less than 40 mK |
Pixel Size | 12.0 x 12.0 μm |
Trigger Control | TTL - Rising Edge |
Power Consumption | 20W |
Interfaces | TTL - Serial @ 1Mbps |
Imager Weight | 200g |
