A vital solution for sewage management involves the implementation of advanced wastewater treatment technologies to ensure the efficient removal of contaminants and the protection of public health and the environment. Utilizing processes such as biological treatment, chemical coagulation, and membrane filtration, sewage treatment plants can effectively remove organic matter, nutrients, pathogens, and pollutants from wastewater before its discharge into receiving water bodies. Moreover, the adoption of innovative technologies such as advanced oxidation processes (AOPs), ultraviolet (UV) disinfection, and ozone treatment further enhances the treatment efficiency and ensures compliance with stringent water quality standards. Additionally, decentralized sewage treatment systems, such as constructed wetlands and decentralized wastewater treatment plants, offer sustainable solutions for treating sewage in areas with limited infrastructure, reducing the reliance on centralized treatment facilities and minimizing environmental impacts. By embracing these comprehensive approaches to sewage management, communities can safeguard public health, protect ecosystems, and promote sustainable water reuse practices for a cleaner and healthier environment.
CORROSION MAPPING
MFL Inspection
Tube thickness mapping
HD VISUAL INSPECTION
LASER 3d Profiling
HYDRO JETTING OF TUBES
TANK SLUDGE Removal & cleaning, without Tank shutdown
Pipe cleaning & Thickness Monitoring
Gridbots Inspector is a miniature yet powerful multifunction robot which can be used for remote inspection inside tight spaces where its very difficult to reachusing traditional robotic bore scopes.
This robotic tool can not only provide visual Ultra high definition data but also provides 3D mapping and environmental data like oxygen level,CO2 level and presence of any hazardous gas.
The robot can be manipulated using a remote control unit which provides realtime distance data reading on the console and allows user to control the robot in an intuitive manner.
The robot is made from aircraft grade aluminum and weighs less than 3 kg.
It comes with option of 100 meter umbilical cord which can be extended on request.
The control cable winder/unwinder unit is easy to carry and provides kevlar support to the cable.
Stinger-WD is a pipeline operations robot which can be used to inspect and perform operations inside the pipelines.
It operates in the pipes of sizes ranging from 50 mm to 5000 mm in diameter and can operate in variety of material of pipes.
The robot can work in extreme environments and it IP68 rated .It can carry various tooling inside the pipelines for welding, cutting, grinding, lapping and inspection operations.
It has twin Full HD camera units with LED illuminators which ensure that the operation can be monitored from various angles with utmost visibility.
The robot can work both in completely auto and manual modes with multitude of sensors and actuators on board.

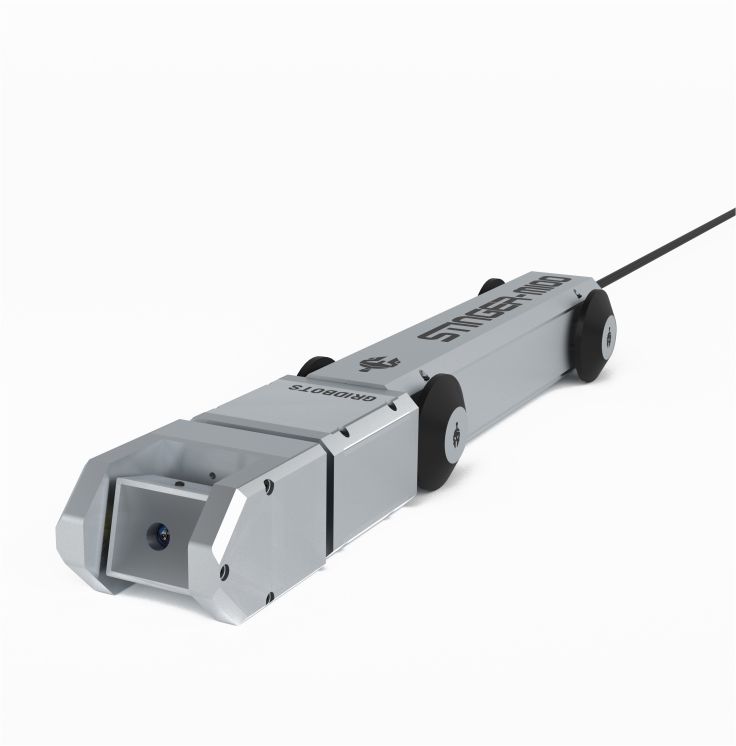

Stinger is a pipeline operations robot which can be used to inspect and perform operations in various sizes of pipes ranging from 50 mm to 5000 mm in diameter of any material.
The robot can work in extreme environments and it IP68 rated.It can carry payloads ranging from 1 Kg to 500kg inside the pipelines both vertically and horizonatally. The robot comes equipped with twin water proof HD camera's and 3D sensing scanner to build pipe profiles in 3D in realtime.
The robot can work both in completely auto and manual modes and can be used for grinding, painting, welding ,cutting,lapping or retreival operations from the pipelines.
Gridbots Spyder series of robots are desgigned to be used in vertical and inclined pipe inspection and operations jobs.
It has the capabilities to climb almost all kind of magnetic pipe surface with a payload upto 5 kgs in most extreme temperature and surface conditions. The robot can be used for surface inspection, weld inspection, blasting, painting, coating, grinding, lapping or many other operations where it is difficult for a human worker to reach. The robot is ultra light construction from aircraft grade aluminum and high strength magnets to adhere to the surface with active distance compensation force multipliers underneath the body..
The robot is internally powered by strong PMSM geared motors,pedometer and 6 DOF IMU sensor to track the motion in all 6 DOF. It also features distance offset sensor beneath its surface to keep a constant distance maintaned from the surface.
The robot has an array of 10 EMAT/USONIC sensors to measure the tube thickness and report it in real-time to the base computer- where a depth profile of pipes can be composed for later analysis
Gridbots Magneto series of robots are desgigned to be used in vertical and inclined waterwalls of powerplant boilers.
It has the capabilities to climb almost all kind of magnetic surfaces with a payload upto 50 kgs in most extreme temperature and surface conditions. The robot can be used for surface inspection, weld inspection, blasting, painting, coating, grinding, lapping or many other operations where it is difficult for a human worker to reach. The robot is ultra light construction from aircraft grade aluminum and high strength magnets to adhere to the surface with active distance compensation force multipliers underneath the body.
The robot is internally powered by strong PMSM geared motors,pedometer and 6 DOF IMU sensor to track the motion in all 6 DOF. It also features distance offset sensor beneath its surface to keep a constant distance maintaned from the surface.
The robot has an array of 10 EMAT/USONIC sensors to measure the tube thickness and report it in real-time to the base computer- where a depth profile of pipes can be composed for later analysis.
Gecko series of robots has the capabilities to climb almost all kind of magnetic surfaces with a payload upto 10 kgs in most extreme conditions. The robot can be used for surface inspection, weld inspection, blasting, painting, coating, grinding, lapping or many other operations where it is difficult for a human worker to reach. The robot is ultra light construction from aircraft grade aluminum and high strength magnets to adhere to the surface with active distance compensation force multipliers underneath the body.
The robot is internally powered by strong geared motors and pedometer sensor to track the motion in all the directionsIt also features distance measurement sensor beneath its surface to keep a constant distance maintaned from the surface.
Gridbots Hydro Blast series of robots are desgigned to be used in vertical and inclined waterwalls of powerplant boilers.
It has the capabilities to climb almost all kind of magnetic surfaces with a payload upto 50 kgs in most extreme temperature and surface conditions. The robot can be used for surface inspection, weld inspection, blasting, painting, coating, grinding, lapping or many other operations where it is difficult for a human worker to reach. The robot is ultra light construction from aircraft grade aluminum and high strength magnets to adhere to the surface with active distance compensation force multipliers underneath the body.
The robot is internally powered by strong PMSM geared motors,pedometer and 6 DOF IMU sensor to track the motion in all 6 DOF. It also features distance offset sensor beneath its surface to keep a constant distance maintaned from the surface.
The robot has an array of 10 EMAT/USONIC sensors to measure the tube thickness and report it in real-time to the base computer- where a depth profile of pipes can be composed for later analysis.
