zSCAN-PCB

3D PROFILE SCANNER

Home » Vision Systems » zSCAN-PCB

This is a laser based high precision profile scanner which can scan 1000 profiles per second and output the data in binary/text format.

The system can read even black marks on black surfaces without any problem.

The system can be used to measure vibrations - read scratches - measure profile straightness in real time as well.

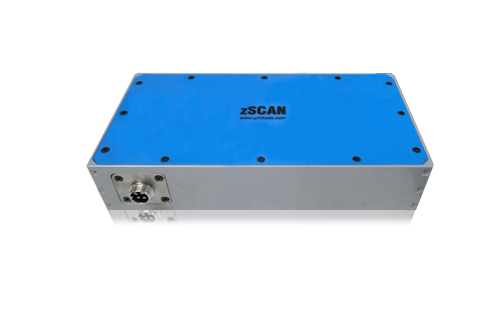

zscan_main


3D PROFILOMETER





Features


250 Hz Update Rate

50 Micron Z Resolution

RS-232 O/P

6 DOF Pose Estimation

Interchangeable Optics

Attachment Edge / Top Tapping

Low Power Consumption

Box Drop Alarm and Fast ROI






Specifications


Model Number GB-zSCAN
Dimensions [LxBxH] 60 mm x 60 mm x 180 mm
Update Rate 250 Hz
Resolution 50 μm
Horizontal Resolution 750 Points
Baseline 100 mm
Illumination Red Laser Line [10mW]
Trigger Control TTL - Rising Edge
Power Consumption 20W - 12 V
Interfaces TTL - Serial @ 1Mbps
Weight 250g



zscan_1
zscan_2
zscan_3
zscan_4
