HYDRO BLAST

BLASTING/RUST REMOVAL ROBOT

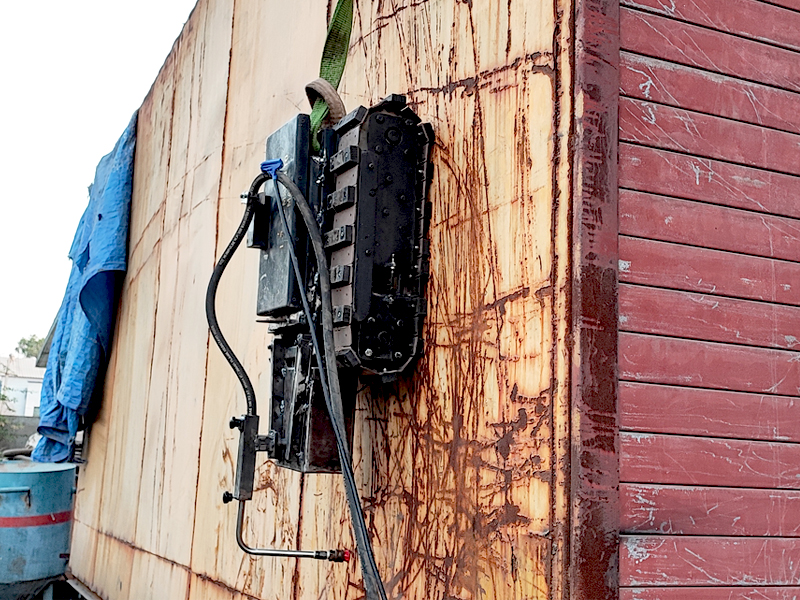

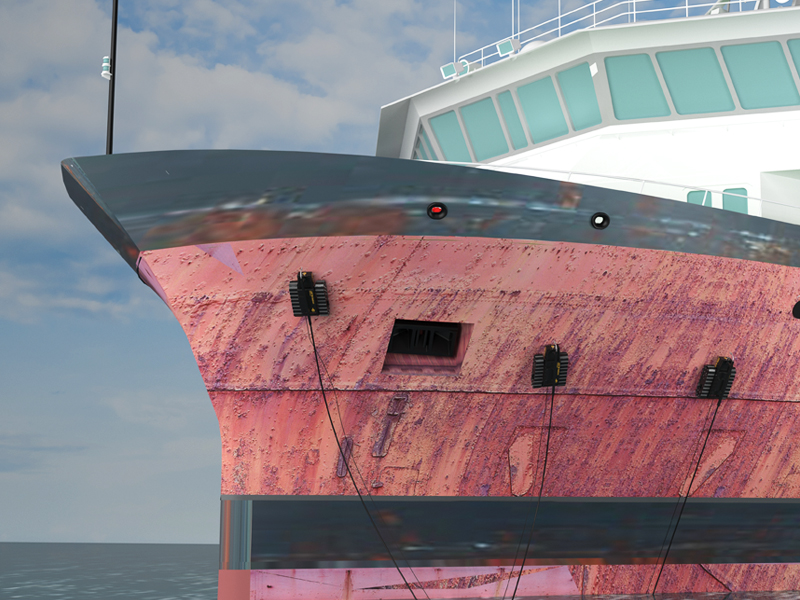

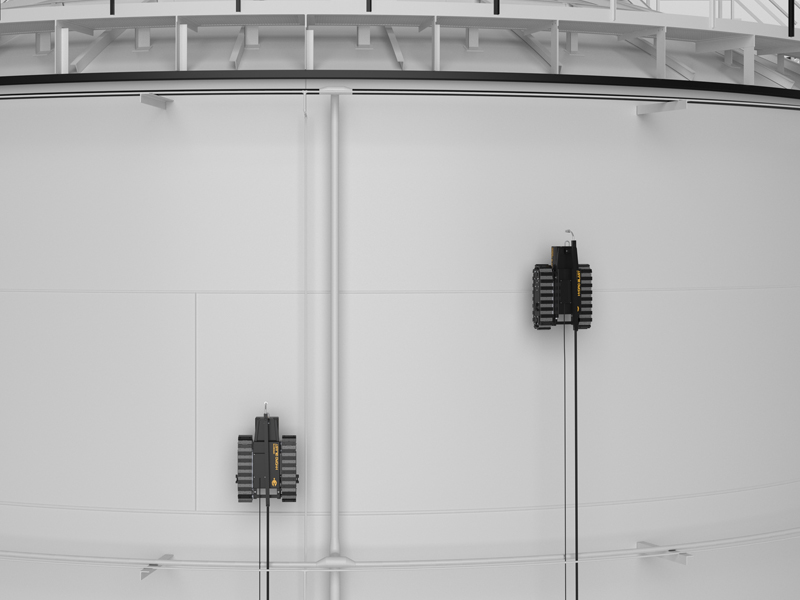

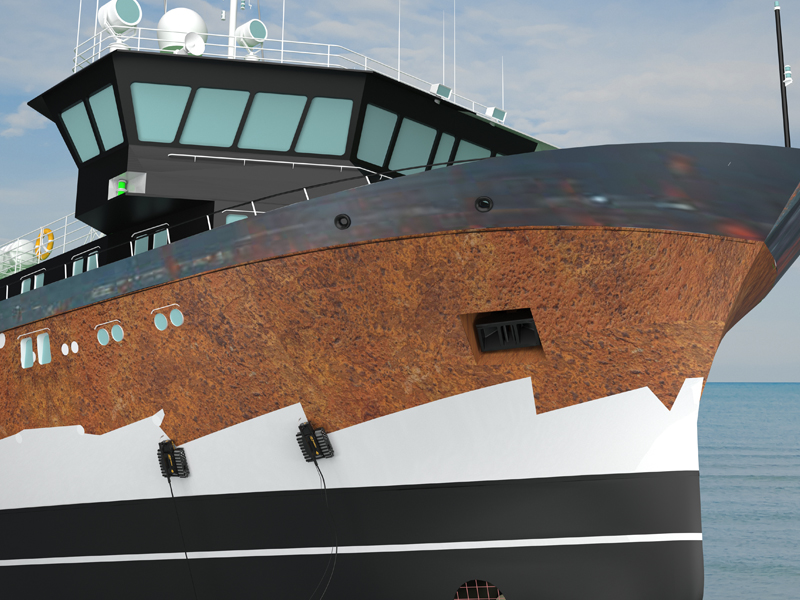

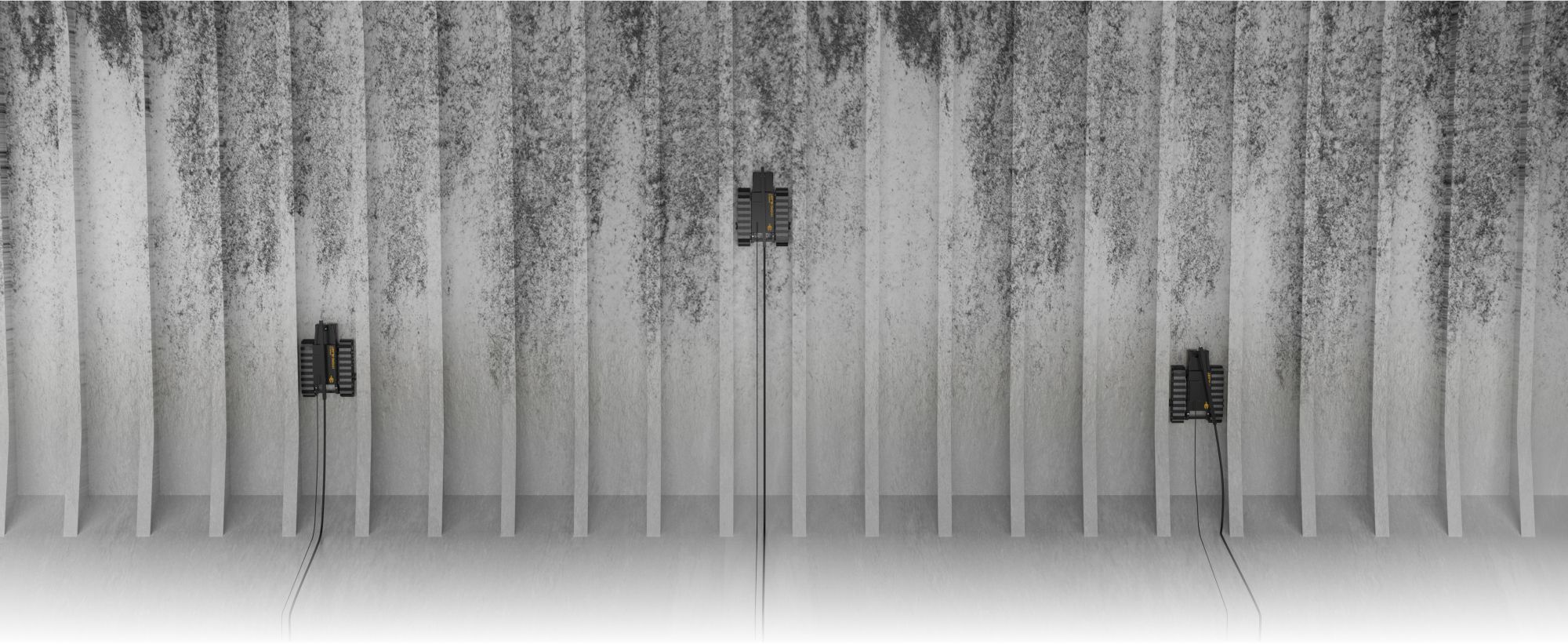

Gridbots HydroBLAST is an enormously powerful and useful robot which can perform hydroblasting of various magnetic surfaces of the chimneys, bridge structures, Petroleum, Acid and many other kind of container tanks online for paint coat, rust and lacquer removal in fastest and most optimum manner.

It utilises Ultra High pressure water jet for such operations and provide realtime video feed to the operator for evaluation of the process impact.

The robot utilises powerful rare earth magnets to adhere to the surface and move at inclined and vertical surface easily.

The robot can also be used for the painting and coating applications after surface preparation.

The robot can operate on a portable power supply and just requires high pressure water jetting source which can perform as per the operation requirement.



hydro_blast_main





robot_controller

ROBOT CONTROLLER

Another interpretation of an HDMI robot controller could be a robotic control interface that utilizes an HDMI connection to interact with a computer or display device. In this context, the HDMI port might be used to present a graphical user interface (GUI) on a connected screen, providing a visual platform for controlling and programming the robot.

This is particularly advantageous during the development and debugging phases, where a clear and detailed display of the robot’s status, sensor readings, and other critical data can streamline the process of fine-tuning the robot's operations.

hydro_blast

Media






Features


Realtime Inertial Tracking (6DOF)

Can tackle Straignt and Inclined waterwalls

Can navigate on convex and concave surfaces

Maximum inspection speed Upto 10 mm/second

Adhesion Force 200 kg

All wheels are power driven

3 FHD Camera for surface quality inspeciton

EMAT/Ultrasonic Probes/Magnetic Flux Sensor Array - As per user choice






Specifications

VARIANTS

Model Number GB-HYDRO BLAST
Wheels Four Powered Wheels/2 Powered Tracks
Payload Upto 50 Kg
Magnets Used Array of NDFeB Magnets
Crawling Speed Maximum of 10 MM/Sec
Encoder Motion Resolution 0.1 mm Increments
IMU 100Hz - 6 DOF
Provide Cable Length Upto 100 Meters
Robot Weight 30 Kgs
Power 24V-50A [1 KW - Peak]
Cameras 2 [1 - Front Down Facing. 1- Rear Down Facing]
Remote Control Tether Cabled [Kevlar wire rope]
Build Material Aircraft Grade Aluminum and Ss316

ENVIRONMENTAL

IP Rating 65
Temperature 5°C to 65°C
Humidity 95%, Non-Condensing

SAFETY

TOF Sensors 6x
Impact Sensor 1x
E-Stop 2x


hydroblast_1
hydroblast_2
hydroblast_3
hydroblast_4

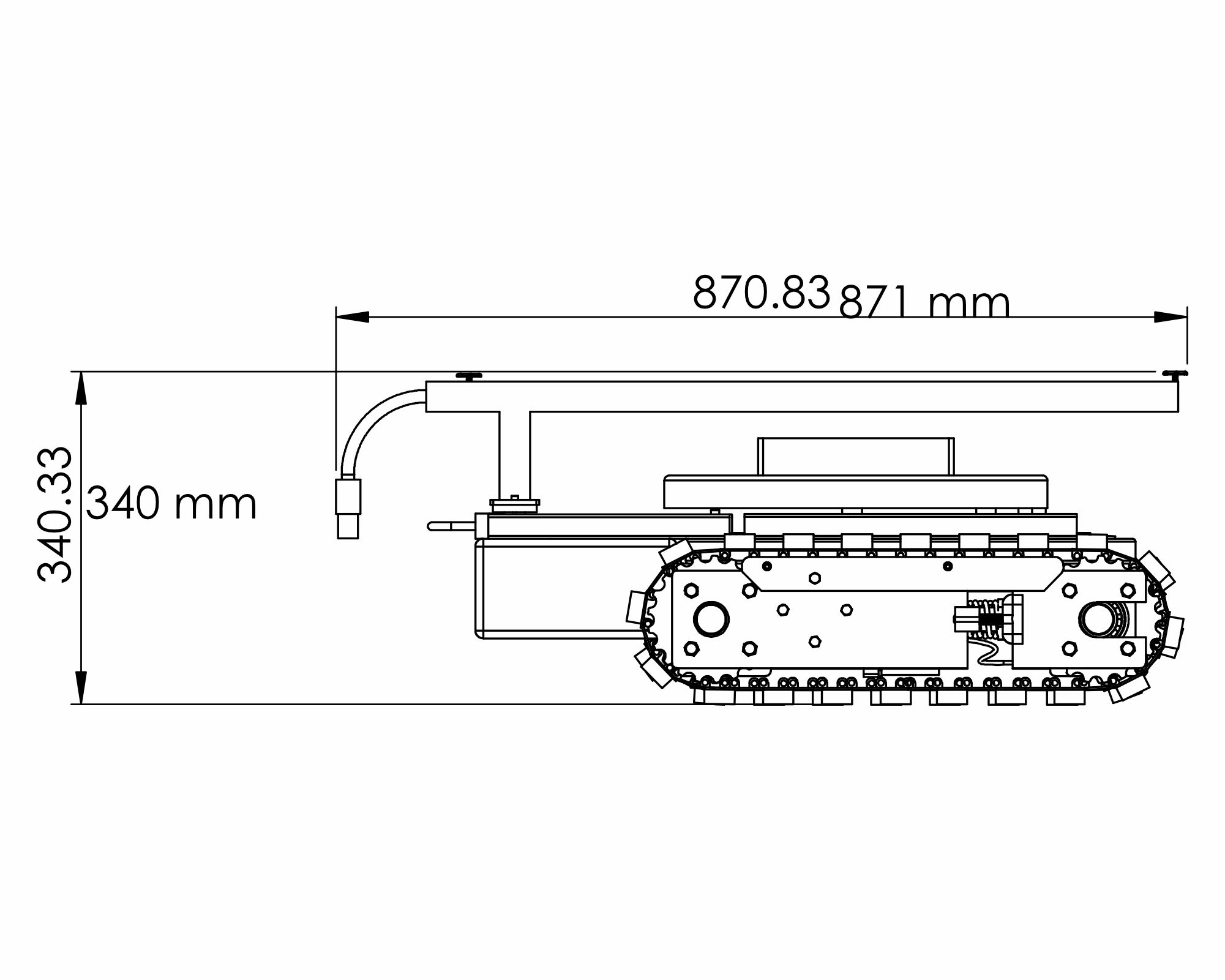

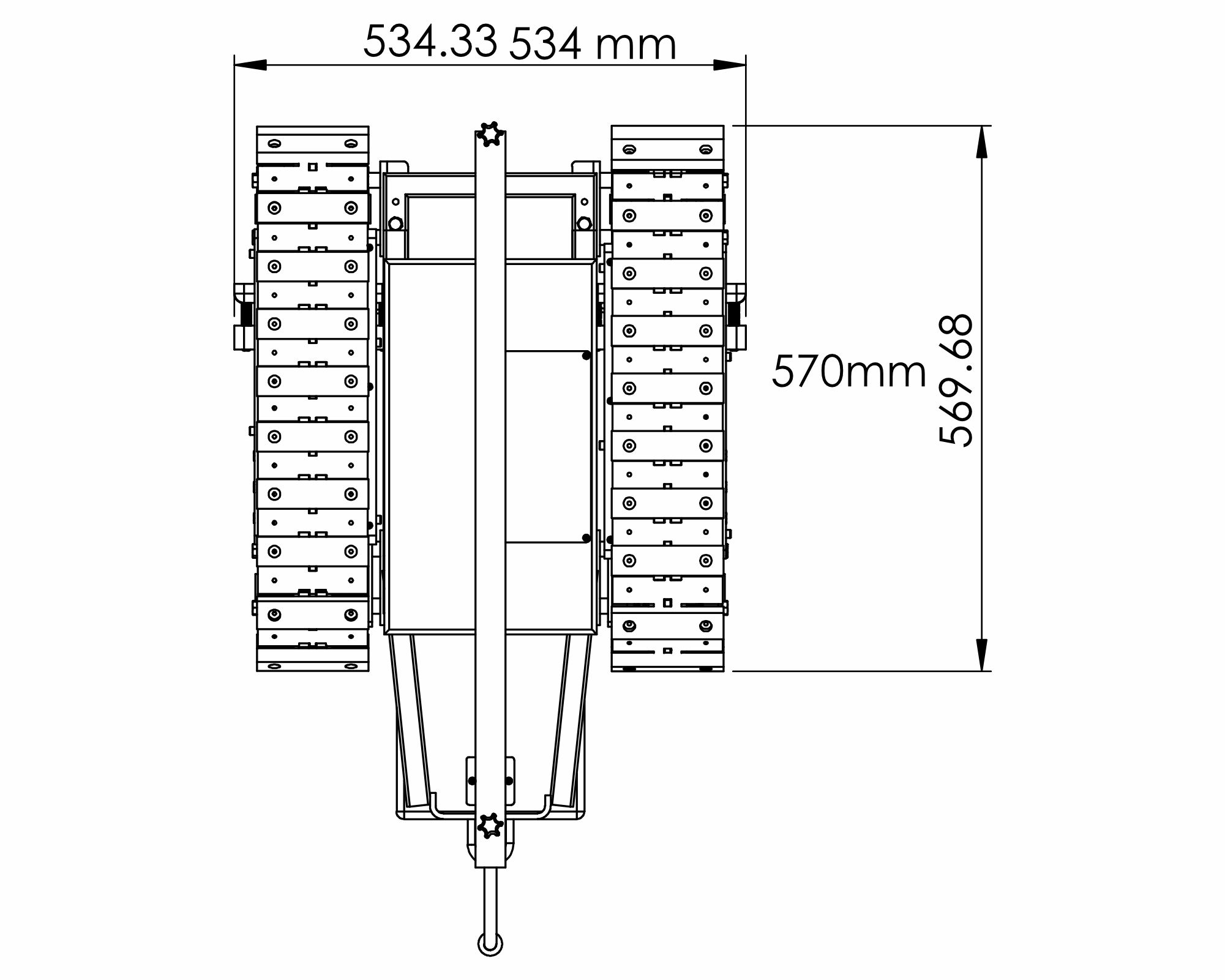

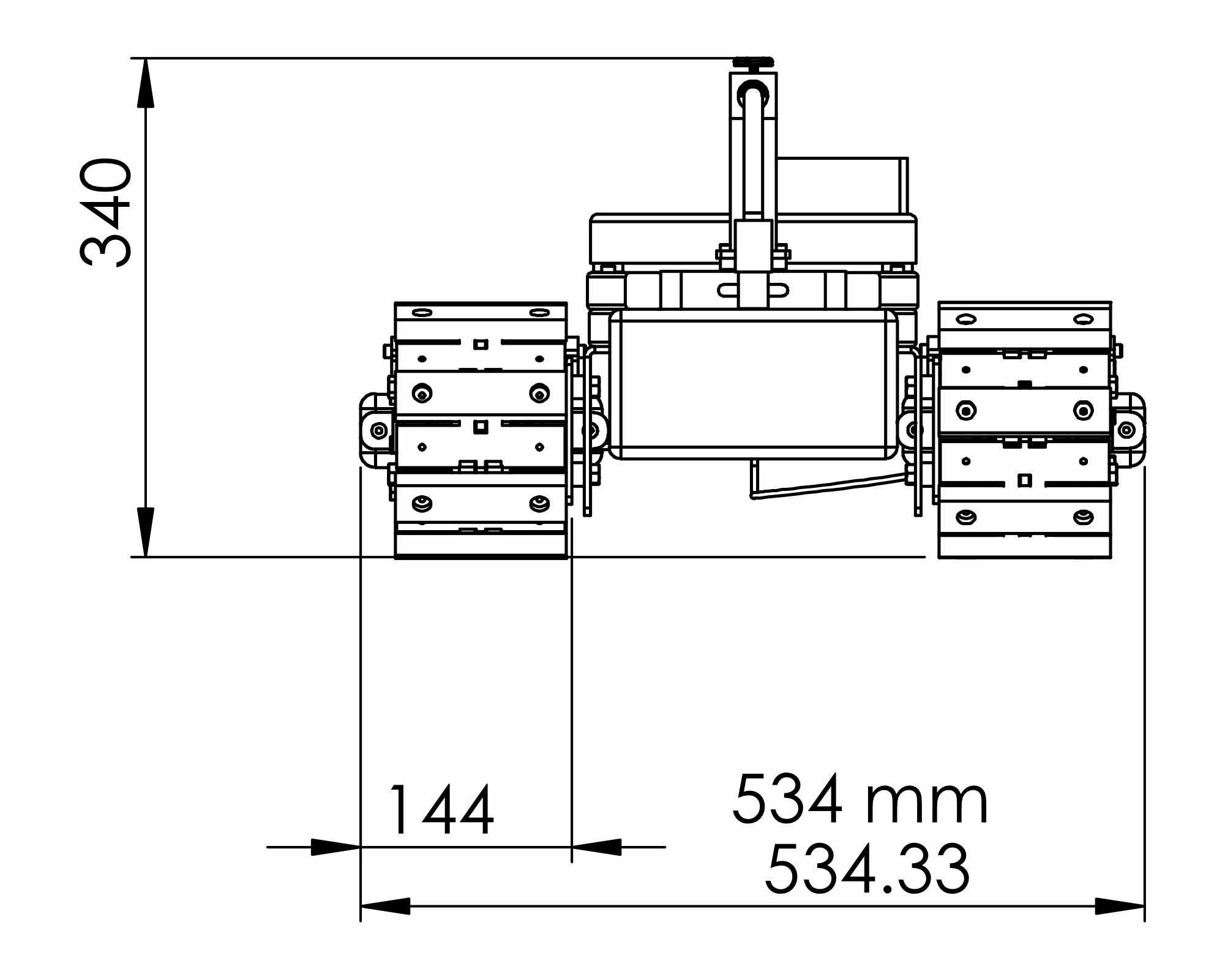

Drawings


hydro_blast1
hydro_blast2
hydro_blast3
